Description
Brand - TIMKEN
Item Number - JM720249/JM720210 (JXH10010A/M720210ES) TIMKEN
Also Known As - JM720249 - JM720210 (JXH10010A - M720210ES)
Category - Double Row Tapered Roller Bearing (SR Type)
Bore Diameter (d) mm - 100
Bore Diameter (d) inch - 3.937
Outer Diameter (D) mm - 155
Outer Diameter (D) inch - 6.1024
Width (T) mm - 80
Width (T) inch - 3.1496
Width (C) mm - 63.417
Width (C) inch - 2.4967
Dynamic Radial Rating (C1) N - 403000
Dynamic Radial Rating (C1) lbf - 90600
Factor (e) - 0.47
Factor (Y1) - 1.43
Factor (Y2) - 2.12
Dynamic Radial Rating (90 million revolutions) (C90) N - 60000
Dynamic Radial Rating (90 million revolutions) (C90) lbf - 13500
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) N - 48600
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) lbf - 10900
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) N - 104000
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) lbf - 23500
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.24

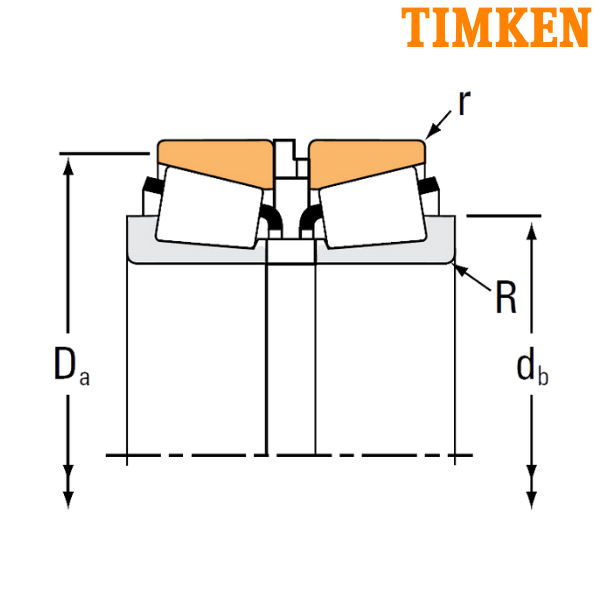

Maximum Shaft Fillet Radius (R) mm - 3
Maximum Shaft Fillet Radius (R) inch - 0.12
Backing Shoulder Diameter (db) mm - 115
Backing Shoulder Diameter (db) inch - 4.53
Maximum Housing Fillet Radius (r) mm - 0.8
Maximum Housing Fillet Radius (r) inch - 0.03
Backing Shoulder Diameter (Da) mm - 149
Backing Shoulder Diameter (Da) inch - 5.87
Weight of the Bearing without Snap Ring (kg) - 5
Weight of the Bearing without Snap Ring (lbs) - 11.01
Inner Spacer - JXH10010A
Outer Spacer - M720210ES
Snap Ring - K516800R
Inner Part Number - JM720249
Outer Part Number - JM720210
SR - SET-RIGHT Assembly
** Images are for representation purposes only
