JM716649/JM716610 (M716649XB / M716610ES) TIMKEN

Brand - TIMKEN
Item Number - JM716649/JM716610 (M716649XB / M716610ES) TIMKEN
Also Known As - JM716649 - JM716610 (M716649XB - M716610ES)
Category - Double Row Tapered Roller Bearing (2TS-IM Type)
Bore Diameter (d) mm - 85
Bore Diameter (d) inch - 3.3465
Outer Diameter (D) mm - 130
Outer Diameter (D) inch - 5.1181
Width (T) mm - 65.491
Width (T) inch - 2.5784
Width (C) mm - 53.491
Width (C) inch - 2.106
Dynamic Radial Rating (C1) N - 281000
Dynamic Radial Rating (C1) lbf - 63100
Factor (e) - 0.44
Factor (Y1) - 1.52
Factor (Y2) - 2.26
Dynamic Radial Rating (90 million revolutions) (C90) N - 41800
Dynamic Radial Rating (90 million revolutions) (C90) lbf - 9400
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) N - 31800
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) lbf - 7150
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) N - 72800
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) lbf - 16400
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.31
Maximum Shaft Fillet Radius (R) mm - 3
Maximum Shaft Fillet Radius (R) inch - 0.12
Backing Shoulder Diameter (db) mm - 98
Backing Shoulder Diameter (db) inch - 3.86
Maximum Housing Fillet Radius (r) mm - 0.8
Maximum Housing Fillet Radius (r) inch - 0.03
Cup Frontface Backing Diameter (Da) mm - 125
Cup Frontface Backing Diameter (Da) inch - 4.92
Weight (kg) - 2.88
Weight (lbs) - 6.36
Inner Spacer - M716649XB
Outer Spacer - M716610ES
Inner Part Number - JM716649
Outer Part Number - JM716610
2TS-IM - Two Single-Row Bearings with an Inner-Ring and Outer-Ring Spacer, Indirect Mounting

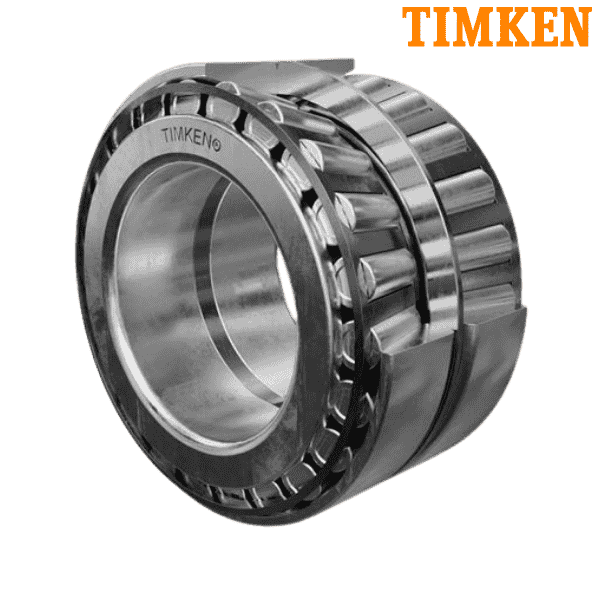

** Images are for representation purposes only
