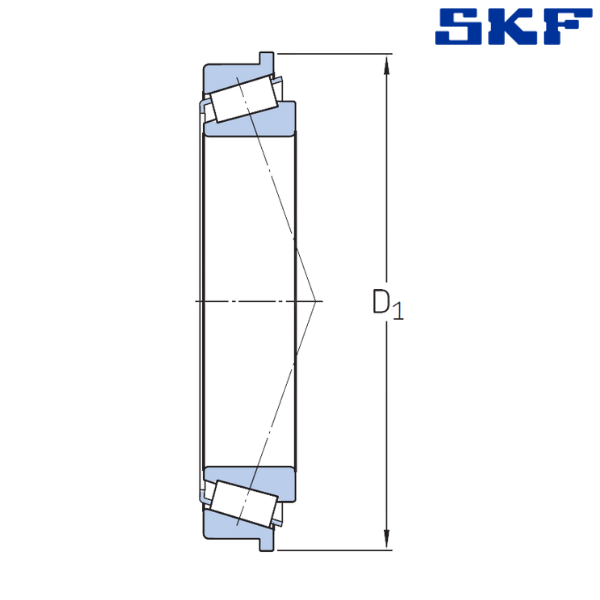

JM 738249/210/VE141 SKF


Country Of Origin: SWEDEN
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - SKF
Item Number - JM 738249/210/VE141 SKF
Category - Gearbox, Tapered roller bearings
Bore Diameter (d) mm - 190
Outer Diameter (D) mm - 260
Total Width (T) mm - 46
Width of Inner Ring (B) mm - 44
Width of Outer Ring (C) mm - 36.5
Dynamic Load Rating (C) kN - 358
Static Load Rating (C0) kN - 765
Limiting Speed (r/min) - 2400
Weight (kg) - 7.07
Limiting Value (e) - 0.48
Calculation Factor (Y) - 1.25
Calculation Factor (Y0) - 0.7

Designation Prefixes and Suffixes:

J - Pressed Window-Type Steel Cage
M - Machined Brass Cage, Rolling Element Centred
VE - This Suffix Followed by Three or Four Digit Numbers Refer to Special Executions.
