Description
Brand - TIMKEN
Item Number - JLM813049/JLM813010 (LM813049XS/LM813010ES) TIMKEN
Also Known As - JLM813049 - JLM813010 (LM813049XS - LM813010ES)
Category - Double Row Tapered Roller Bearing (SR Type)
Bore Diameter (d) mm - 70
Bore Diameter (d) inch - 2.7559
Outer Diameter (D) mm - 110
Outer Diameter (D) inch - 4.3307
Width (T) mm - 58
Width (T) inch - 2.2835
Width (C) mm - 46.519
Width (C) inch - 1.8315
Dynamic Radial Rating (C1) N - 199000
Dynamic Radial Rating (C1) lbf - 44800
Factor (e) - 0.49
Factor (Y1) - 1.38
Factor (Y2) - 2.06
Dynamic Radial Rating (90 million revolutions) (C90) N - 29700
Dynamic Radial Rating (90 million revolutions) (C90) lbf - 6680
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) N - 24800
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) lbf - 5570
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) N - 51700
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) lbf - 11600
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.2

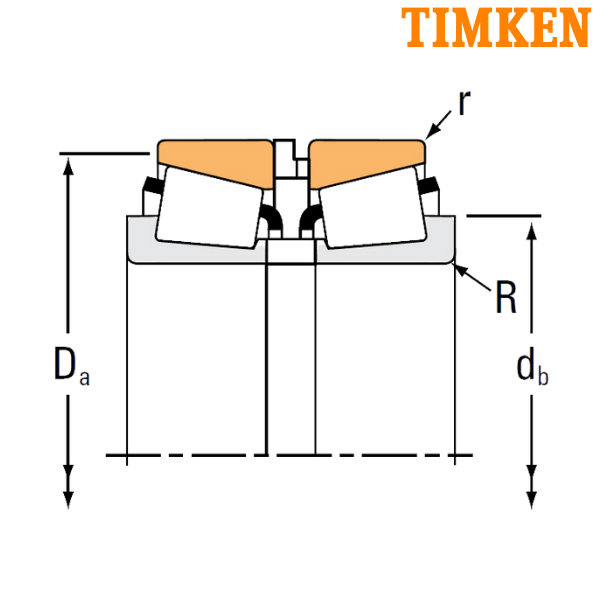

Maximum Shaft Fillet Radius (R) mm - 1
Maximum Shaft Fillet Radius (R) inch - 0.04
Backing Shoulder Diameter (db) mm - 78
Backing Shoulder Diameter (db) inch - 3.07
Maximum Housing Fillet Radius (r) mm - 0.5
Maximum Housing Fillet Radius (r) inch - 0.02
Backing Shoulder Diameter (Da) mm - 105
Backing Shoulder Diameter (Da) inch - 4.13
Weight of the Bearing without Snap Ring (kg) - 1.88
Weight of the Bearing without Snap Ring (lbs) - 4.11
Inner Spacer - LM813049XS
Outer Spacer - LM813010ES
Snap Ring - K518419R
Inner Part Number - JLM813049
Outer Part Number - JLM813010
SR - SET-RIGHT Assembly
** Images are for representation purposes only
