JLM722948-JLM722912 TIMKEN

Brand - TIMKEN
Item Number - JLM722948-JLM722912 TIMKEN
Category - Precision Tapered Roller Bearing - TS (Tapered Single) Style
Bore Diameter (d) mm - 115
Bore Diameter (d) inch - 4.5276
Outer Diameter (D) mm - 165
Outer Diameter (D) inch - 6.4961
Width (T) mm - 28
Width (T) inch - 1.1024
Static Radial Rating (C0) kN - 245
Static Radial Rating (C0) lbs - 55100
Dynamic Radial Rating (1 million revolutions) (C1) kN - 148
Dynamic Radial Rating (1 million revolutions) (C1) lbs - 33300
Dynamic Radial Rating (90 million revolutions) (C90) kN - 38.3
Dynamic Radial Rating (90 million revolutions) (C90) lbs - 8610
Dynamic Thrust Rating (90 million revolutions) (Ca90) kN - 30.1
Dynamic Thrust Rating (90 million revolutions) (Ca90) lbs - 6770
Cone Width (B) mm - 27
Cone Width (B) inch - 1.063
Cup Width (C) mm - 21
Cup Width (C) inch - 0.8268
Effective Center Location (a) mm - 5.6
Effective Center Location (a) inch - 0.22
Maximum Shaft Fillet Radius at Cone Backface (R) mm - 3.3
Maximum Shaft Fillet Radius at Cone Backface (R) inch - 0.13
Cone Frontface Backing Diameter (da) mm - 121
Cone Frontface Backing Diameter (da) inch - 4.76
Cone Backface Backing Diameter (db) mm - 127
Cone Backface Backing Diameter (db) inch - 5
Maximum Housing Fillet Radius at Cup Backface (r) mm - 3
Maximum Housing Fillet Radius at Cup Backface (r) inch - 0.12
Cup Frontface Backing Diameter (Da) mm - 158
Cup Frontface Backing Diameter (Da) inch - 6.22
Cup Backface Backing Diameter (Db) mm - 151
Cup Backface Backing Diameter (Db) inch - 5.94
Stiffness (Kr10^6) N/mm - 2.53
Stiffness (Kr10^6) lbs/in - 14.4
Stiffness (Fr) kN - 3.8
Stiffness (Fr) lbs - 854
Stiffness (Ka10) N/mm - 0.45
Stiffness (Ka10) lbs/in - 2.57
Stiffness (Fa) kN - 3
Stiffness (Fa) lbs - 674
Speed Rating (RPM) - 2900
Weight (kg) - 1.75
Weight (lbs) - 3.86

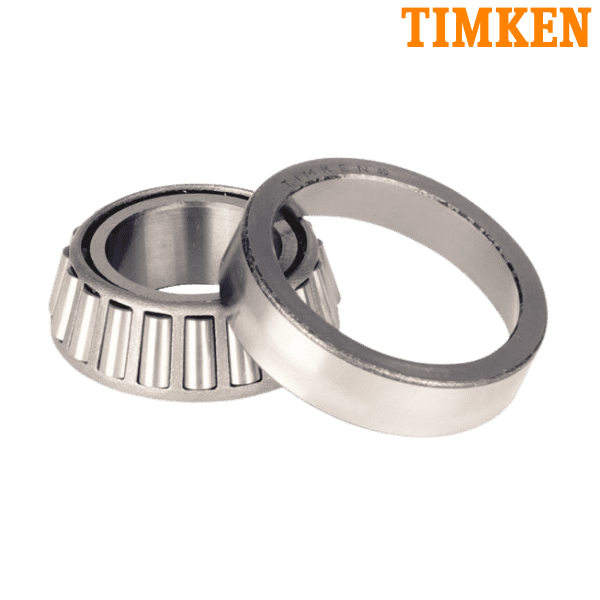

** Images are for representation purposes only
