Description
Brand - TIMKEN
Item Number - JLM508748/JLM508710 (LM508748XS/LM508710ES) TIMKEN
Also Known As - JLM508748 - JLM508710 (LM508748XS - LM508710ES)
Category - Double Row Tapered Roller Bearing (SR Type)
Bore Diameter (d) mm - 60
Bore Diameter (d) inch - 2.3622
Outer Diameter (D) mm - 95
Outer Diameter (D) inch - 3.7402
Width (T) mm - 54
Width (T) inch - 2.126
Width (C) mm - 43.491
Width (C) inch - 1.7122
Dynamic Radial Rating (C1) N - 170000
Dynamic Radial Rating (C1) lbf - 38200
Factor (e) - 0.4
Factor (Y1) - 1.68
Factor (Y2) - 2.5
Dynamic Radial Rating (90 million revolutions) (C90) N - 25300
Dynamic Radial Rating (90 million revolutions) (C90) lbf - 5690
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) N - 17400
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) lbf - 3910
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) N - 44000
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) lbf - 9900
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.45

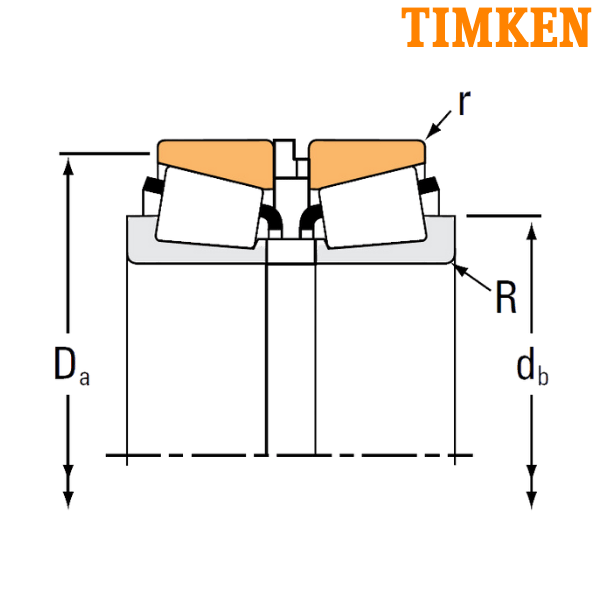

Maximum Shaft Fillet Radius (R) mm - 5
Maximum Shaft Fillet Radius (R) inch - 0.2
Backing Shoulder Diameter (db) mm - 75
Backing Shoulder Diameter (db) inch - 2.95
Maximum Housing Fillet Radius (r) mm - 0.5
Maximum Housing Fillet Radius (r) inch - 0.02
Backing Shoulder Diameter (Da) mm - 91
Backing Shoulder Diameter (Da) inch - 3.58
Weight of the Bearing without Snap Ring (kg) - 1.26
Weight of the Bearing without Snap Ring (lbs) - 2.77
Inner Spacer - LM508748XS
Outer Spacer - LM508710ES
Snap Ring - K518779R
Inner Part Number - JLM508748
Outer Part Number - JLM508710
SR - SET-RIGHT Assembly
** Images are for representation purposes only
