Description
Brand - TIMKEN
Item Number - JLM506849/JLM506810 (LM506849XS/LM506810ES) TIMKEN
Also Known As - JLM506849 - JLM506810 (LM506849XS - LM506810ES)
Category - Double Row Tapered Roller Bearing (SR Type)
Bore Diameter (d) mm - 55
Bore Diameter (d) inch - 2.1654
Outer Diameter (D) mm - 90
Outer Diameter (D) inch - 3.5433
Width (T) mm - 52
Width (T) inch - 2.0472
Width (C) mm - 42.504
Width (C) inch - 1.6734
Dynamic Radial Rating (C1) N - 190000
Dynamic Radial Rating (C1) lbf - 42600
Factor (e) - 0.4
Factor (Y1) - 1.68
Factor (Y2) - 2.5
Dynamic Radial Rating (90 million revolutions) (C90) N - 28200
Dynamic Radial Rating (90 million revolutions) (C90) lbf - 6340
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) N - 19400
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) lbf - 4370
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) N - 49100
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) lbf - 11000
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.45

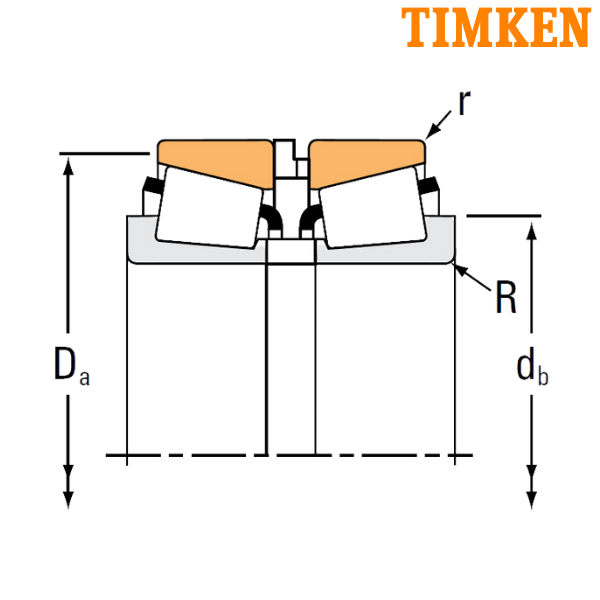

Maximum Shaft Fillet Radius (R) mm - 1.5
Maximum Shaft Fillet Radius (R) inch - 0.06
Backing Shoulder Diameter (db) mm - 63
Backing Shoulder Diameter (db) inch - 2.48
Maximum Housing Fillet Radius (r) mm - 0.5
Maximum Housing Fillet Radius (r) inch - 0.02
Backing Shoulder Diameter (Da) mm - 86
Backing Shoulder Diameter (Da) inch - 3.39
Weight of the Bearing without Snap Ring (kg) - 1.15
Weight of the Bearing without Snap Ring (lbs) - 2.57
Inner Spacer - LM506849XS
Outer Spacer - LM506810ES
Snap Ring - K516778R
Inner Part Number - JLM506849
Outer Part Number - JLM506810
SR - SET-RIGHT Assembly
** Images are for representation purposes only
