JL730646-JL730612-B TIMKEN

Brand - TIMKEN
Item Number - JL730646-JL730612-B TIMKEN
Category - Precision Tapered Roller Bearings - TSF(Tapered Single with Flange) Style
Bore Diameter (d) mm - 150
Bore Diameter (d) inch - 5.9055
Outer Diameter (D) mm - 205
Outer Diameter (D) inch - 8.0709
Bearing Width to Flange (T1) mm - 12
Bearing Width to Flange (T1) inch - 0.4724
Static Radial Rating (C0) kN - 339
Static Radial Rating (C0) lbs - 76200
Dynamic Radial Rating (1 million revolutions) (C1) kN - 179
Dynamic Radial Rating (1 million revolutions) (C1) lbs - 40200
Dynamic Radial Rating (90 million revolutions) (C90) kN - 46.5
Dynamic Radial Rating (90 million revolutions) (C90) lbs - 10500
Dynamic Thrust Rating (90 million revolutions) (Ca90) kN - 36.5
Dynamic Thrust Rating (90 million revolutions) (Ca90) lbs - 8210
Flange Outer Diameter (D1) mm - 210
Flange Outer Diameter (D1) inch - 8.27
Flange Width (C2) mm - 4.86
Flange Width (C2) inch - 0.19
Cone Width (B) mm - 28.575
Cone Width (B) inch - 1.125
Cup Width (C) mm - 21.438
Cup Width (C) inch - 0.844
Effective Center Location (a) mm - 11.4
Effective Center Location (a) inch - 0.45
Maximum Shaft Fillet Radius at Cone Backface (R) mm - 3.3
Maximum Shaft Fillet Radius at Cone Backface (R) inch - 0.13
Cone Frontface Backing Diameter (da) mm - 158
Cone Frontface Backing Diameter (da) inch - 6.22
Cone Backface Backing Diameter (db) mm - 164
Cone Backface Backing Diameter (db) inch - 6.46
Maximum Housing Fillet Radius at Cup Backface (r) mm - 3.3
Maximum Housing Fillet Radius at Cup Backface (r) inch - 0.13
Cup Frontface Backing Diameter (Da) mm - 200
Cup Frontface Backing Diameter (Da) inch - 7.87
Cup Backface Backing Diameter (Db) mm - 190
Cup Backface Backing Diameter (Db) inch - 7.48
Stiffness (Kr10^6) N/mm - 3.3
Stiffness (Kr10^6) lbs/in - 18.84
Stiffness (Fr) kN - 4.6
Stiffness (Fr) lbs - 1034
Stiffness (Ka10) N/mm - 0.588
Stiffness (Ka10) lbs/in - 3.36
Stiffness (Fa) kN - 3.6
Stiffness (Fa) lbs - 809
Speed Rating (RPM) - 2200
Weight (kg) - 2.69
Weight (lbs) - 5.93

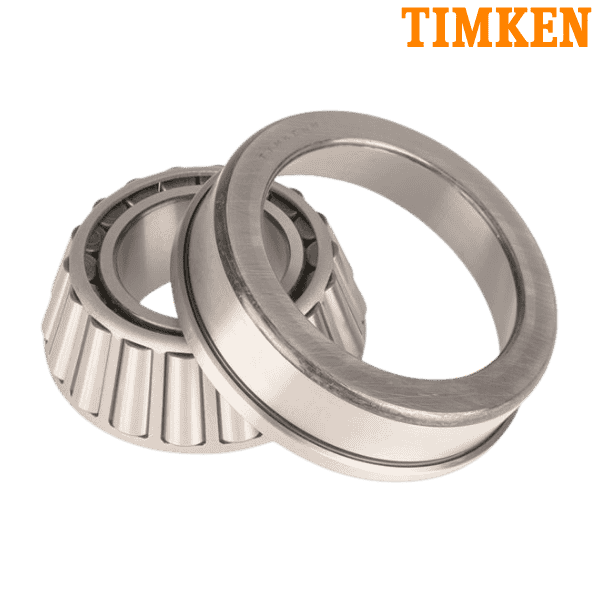

** Images are for representation purposes only
