Description
Brand - TIMKEN
Item Number - JL725346/JL725316 TIMKEN
Also Known As - JL725346 - JL725316
Category - Single Row Tapered Roller Bearing (TS Type)

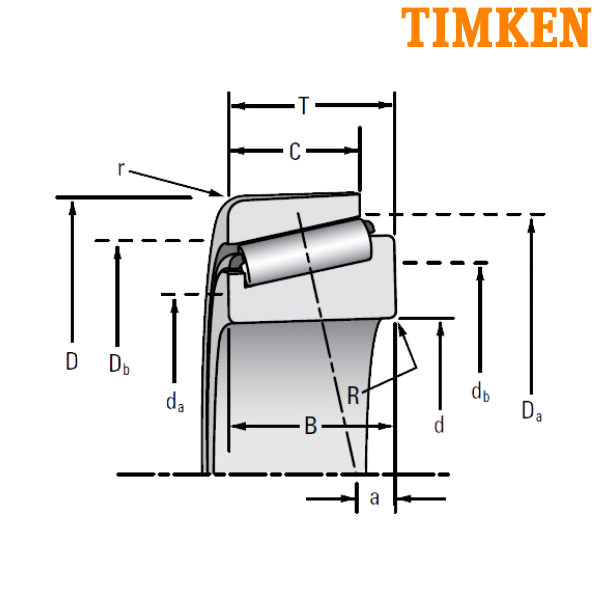

Bore Diameter (d) mm - 125
Bore Diameter (d) inch - 4.9213
Outer Diameter (D) mm - 175
Outer Diameter (D) inch - 6.8898
Width (T) mm - 25.4
Width (T) inch - 1
Dynamic Load Rating (C1) N - 150000
Dynamic Load Rating (C1) lbf - 33700
Factor (e) - 0.48
Factor (Y) - 1.26
Basic Dynamic Radial Load Rating (90 Million Revolution) (C90) N - 38900
Basic Dynamic Radial Load Rating (90 Million Revolution) (C90) lbf - 8750
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) N - 31700
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) lbf - 7130
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.23
Basic Static Radial Load Rating (C0) N - 246000
Basic Static Radial Load Rating (C0) lbf - 55300
Cone Width (B) mm - 25.4
Cone Width (B) inch - 1
Cup Width (C) mm - 18.288
Cup Width (C) inch - 0.72
Effective Center Location (a) mm - 9.1
Effective Center Location (a) inch - 0.36
Maximum Shaft Fillet Radius (R) mm - 3.3
Maximum Shaft Fillet Radius (R) inch - 0.13
Cone Frontface Backing Diameter (da) mm - 133
Cone Frontface Backing Diameter (da) inch - 5.24
Cone Backface Backing Diameter (db) mm - 138
Cone Backface Backing Diameter (db) inch - 5.43
Max Housing Fillet Radius (r) mm - 3.3
Max Housing Fillet Radius (r) inch - 0.13
Cup Frontface Backing Diameter (Da) mm - 168
Cup Frontface Backing Diameter (Da) inch - 6.61
Cup Backface Backing Diameter (Db) mm - 161
Cup Backface Backing Diameter (Db) inch - 6.34
Cage-Cone Backface Clearance (Aa) mm - 3
Cage-Cone Backface Clearance (Aa) inch - 0.11
Cage-Cone Frontface Clearance (Ab) mm - 1.5
Cage-Cone Frontface Clearance (Ab) inch - 0.06
Geometry Factor (G1) - 186.6
Geometry Factor (G2) - 77.7
Geometry Factor (Cg) - 0.1535
Weight (kg) - 1.69
Weight (lbs) - 3.72
Inner Part Number - JL725346
Outer Part Number - JL725316

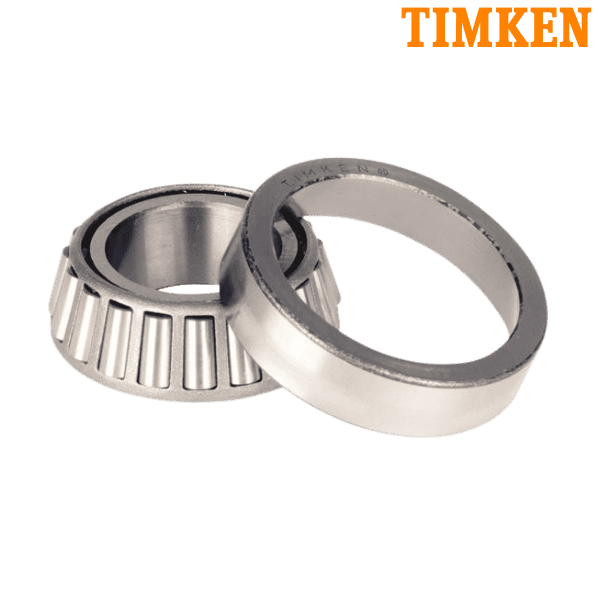

TS - Single Row Tapered Roller Bearing
** Images are for representation purposes only
