Description
Brand - TIMKEN
Item Number - JHM534149/JHM534110 TIMKEN
Also Known As - JHM534149 - JHM534110
Category - Single Row Tapered Roller Bearing (TS Type)
Bore Diameter (d) mm - 170
Bore Diameter (d) inch - 6.6929
Outer Diameter (D) mm - 230
Outer Diameter (D) inch - 9.0551
Width (T) mm - 39
Width (T) inch - 1.5354
Dynamic Load Rating (C1) N - 316000
Dynamic Load Rating (C1) lbf - 71100
Factor (e) - 0.38
Factor (Y) - 1.57
Basic Dynamic Radial Load Rating (90 Million Revolution) (C90) N - 82000
Basic Dynamic Radial Load Rating (90 Million Revolution) (C90) lbf - 18400
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) N - 53800
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) lbf - 12100
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.52
Basic Static Radial Load Rating (C0) N - 590000
Basic Static Radial Load Rating (C0) lbf - 133000
Cone Width (B) mm - 38
Cone Width (B) inch - 1.4961
Cup Width (C) mm - 31
Cup Width (C) inch - 1.2205
Effective Center Location (a) mm - 4.6
Effective Center Location (a) inch - 0.18

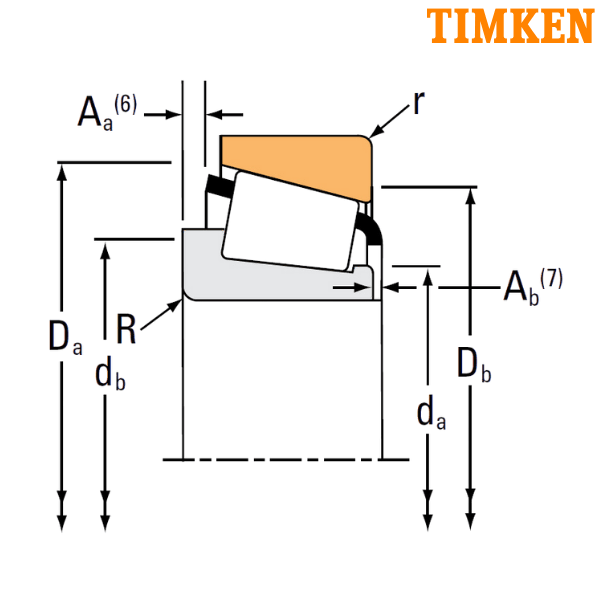

Maximum Shaft Fillet Radius (R) mm - 3
Maximum Shaft Fillet Radius (R) inch - 0.12
Cone Frontface Backing Diameter (da) mm - 178
Cone Frontface Backing Diameter (da) inch - 7.01
Cone Backface Backing Diameter (db) mm - 184
Cone Backface Backing Diameter (db) inch - 7.24
Max Housing Fillet Radius (r) mm - 2.5
Max Housing Fillet Radius (r) inch - 0.1
Cup Frontface Backing Diameter (Da) mm - 224
Cup Frontface Backing Diameter (Da) inch - 8.82
Cup Backface Backing Diameter (Db) mm - 217
Cup Backface Backing Diameter (Db) inch - 8.54
Cage-Cone Backface Clearance (Aa) mm - 1
Cage-Cone Backface Clearance (Aa) inch - 0.04
Cage-Cone Frontface Clearance (Ab) mm - 3.4
Cage-Cone Frontface Clearance (Ab) inch - 0.14
Geometry Factor (G1) - 479.6
Geometry Factor (G2) - 89.8
Geometry Factor (Cg) - 0.135
Weight (kg) - 4.3
Weight (lbs) - 9.46
Inner Part Number - JHM534149
Outer Part Number - JHM534110
TS - Single Row Tapered Roller Bearing
** Images are for representation purposes only
