Description
Brand - TIMKEN
Item Number - JHM522649/JHM522610 (HM522649XE/HM522610ES) TIMKEN
Also Known As - JHM522649 - JHM522610 (HM522649XE - HM522610ES)
Category - Double Row Tapered Roller Bearing (SR Type)
Bore Diameter (d) mm - 110
Bore Diameter (d) inch - 4.3307
Outer Diameter (D) mm - 180
Outer Diameter (D) inch - 7.0866
Width (T) mm - 103
Width (T) inch - 4.0551
Width (C) mm - 84.364
Width (C) inch - 3.3215
Dynamic Radial Rating (C1) N - 647000
Dynamic Radial Rating (C1) lbf - 145000
Factor (e) - 0.41
Factor (Y1) - 1.66
Factor (Y2) - 2.48
Dynamic Radial Rating (90 million revolutions) (C90) N - 96300
Dynamic Radial Rating (90 million revolutions) (C90) lbf - 21600
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) N - 66900
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) lbf - 15000
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) N - 168000
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) lbf - 37700
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.44

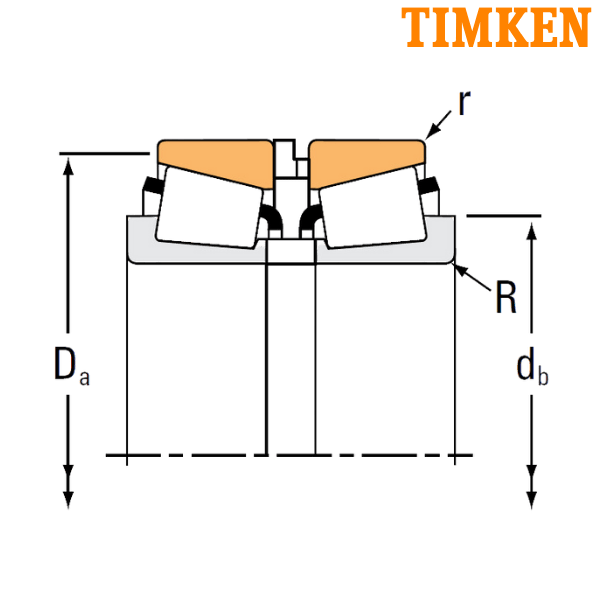

Maximum Shaft Fillet Radius (R) mm - 3
Maximum Shaft Fillet Radius (R) inch - 0.12
Backing Shoulder Diameter (db) mm - 127
Backing Shoulder Diameter (db) inch - 5
Maximum Housing Fillet Radius (r) mm - 0.8
Maximum Housing Fillet Radius (r) inch - 0.03
Backing Shoulder Diameter (Da) mm - 172
Backing Shoulder Diameter (Da) inch - 6.77
Weight of the Bearing without Snap Ring (kg) - 9.4
Weight of the Bearing without Snap Ring (lbs) - 20.68
Inner Spacer - HM522649XE
Outer Spacer - HM522610ES
Snap Ring - K518334R
Inner Part Number - JHM522649
Outer Part Number - JHM522610
SR - SET-RIGHT Assembly
** Images are for representation purposes only
