JHA10XL0 RBC

Brand - RBC
Item Number - JHA10XL0*RBC
Category - Sealed (Molded) Radial Contact, X-Type Thin Section Ball Bearings

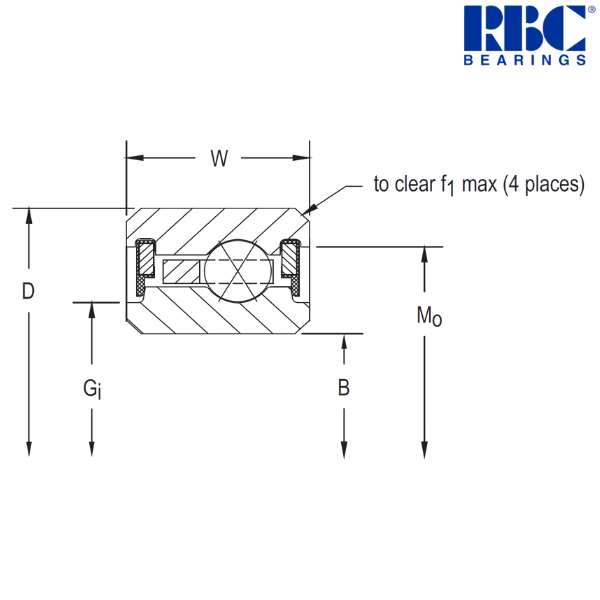

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 1 inch
Outside Diameter (D) - 1.375 inch
Width (W) - 0.25 inch
Recess Diameter (Gi) - 1.093 inch
Groove Diameter (Mo) - 1.26 inch
Housing Fillet (f1) - 0.015 inch
Ball Diameter - 0.09375 inch
Ball Quantity - 22 pcs.
Approximate Weight - 0.035 lbs
Radial Static Load - 290 lbf
Radial Dynamic Load - 270 lbf
Thrust Static Load - 730 lbf
Thrust Dynamic Load - 680 lbf
Moment Static Load - 170 lbf
Moment Dynamic Load - 160 lbf

Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (B) - 25.4 mm
Outside Diameter (D) - 34.925 mm
Width (W) - 6.35 mm
Recess Diameter (Gi) - 27.762 mm
Groove Diameter (Mo) - 32.004 mm
Housing Fillet (f1) - 0.38 mm
Approximate Weight - 0.016 kg
Radial Static Load - 1290 N
Radial Dynamic Load - 1200 N
Thrust Static Load - 3250 N
Thrust Dynamic Load - 3020 N
Moment Static Load - 20 Nm
Moment Dynamic Load - 20 Nm

Description of Suffixes and Prefixes :
J - 2 seals - molded rubber
HA - Extended Width
X - 4-Point Ball Contact
L - GFR Nylon
0 - ABEC 1F

Other salient points about this Bearing :
• 52100 Steel
• Large Diameter
• Light Weight
• Small Cross Section
• Snap-Over Ball Separator
• Sealed

* The alphanumeric identification system is used under license.

♦ ♦ Images are for representation purposes only
