Description
Brand - KAYDON
Item Number - JG100CP0 KAYDON
Also Known As - KDN.JG100CP0
Category - Reali-Slim Thin Section Radial Contact Ball Bearing

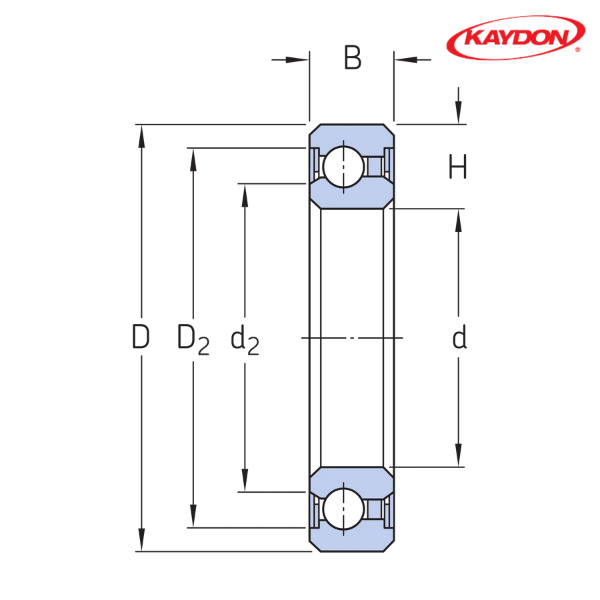

Inner Diameter (d) mm - 254
Outer Diameter (D) mm - 304.8
Radial Cross Section (H) mm - 25.4
Width (B) mm - 25.4
Dynamic Load Rating, Radial Direction (CK) kN - 40.9
Basic Static Load Rating, Radial Direction (C0) kN - 80.3
Weight (kg) - 3.58

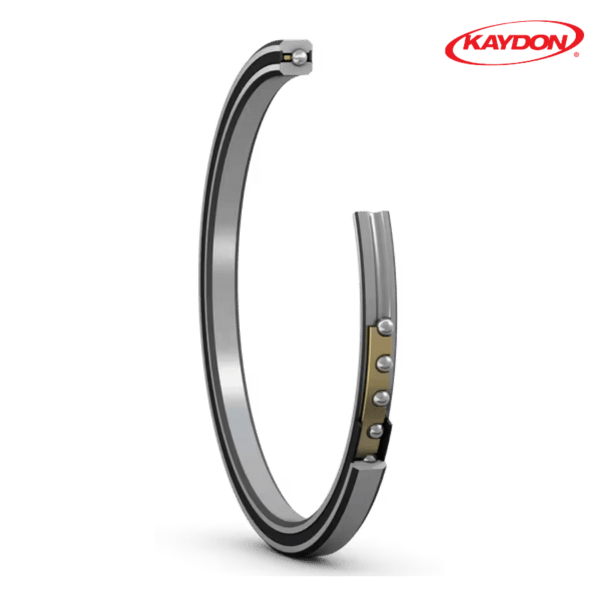

** Images are for representation purposes only
