JB070CP0 RBC

Brand - RBC
Item Number - JB070CP0*RBC
Category - Sealed (Molded) Radial Contact, C-Type Thin Section Ball Bearings

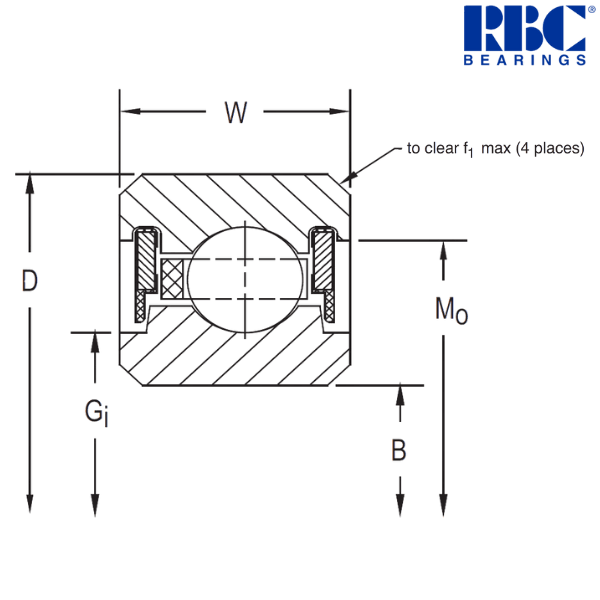

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 7 inch
Outside Diameter (D) - 7.625 inch
Width (W) - 0.3125 inch
Recess Diameter (Gi) - 7.156 inch
Groove Diameter (Mo) - 7.43 inch
Housing Fillet (f1) - 0.032 inch
Ball Diameter - 0.15625 inch
Ball Quantity - 73 pcs.
Approximate Weight - 0.5 lbs
Radial Static Load - 2970 lbf
Radial Dynamic Load - 1240 lbf

Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (B) - 177.8 mm
Outside Diameter (D) - 193.675 mm
Width (W) - 7.938 mm
Recess Diameter (Gi) - 181.76 mm
Groove Diameter (Mo) - 188.72 mm
Housing Fillet (f1) - 0.81 mm
Approximate Weight - 0.227 kg
Radial Static Load - 13210 N
Radial Dynamic Load - 5520 N

Description of Suffixes and Prefixes :
J - 2 seals - molded rubber
B - Standard Width
C - Radial Ball Contact
P - Brass or (Composite)
0 - ABEC 1F

Other salient points about this Bearing :
• 52100 Steel
• Large Diameter
• Light Weight
• Small Cross Section
• Snap-Over Ball Separator
• Sealed

* The alphanumeric identification system is used under license.

♦ ♦ Images are for representation purposes only
