JA075CP0 RBC

Brand - RBC
Item Number - JA075CP0*RBC

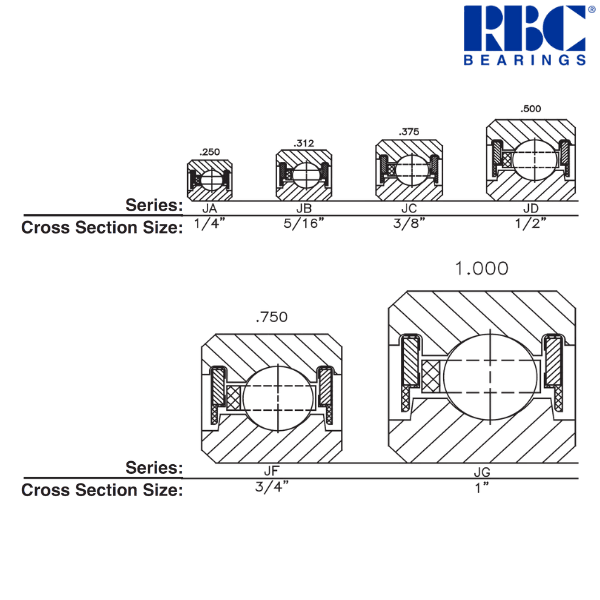

Category - Sealed (Molded) Radial Contact, C-Type Thin Section Ball Bearings

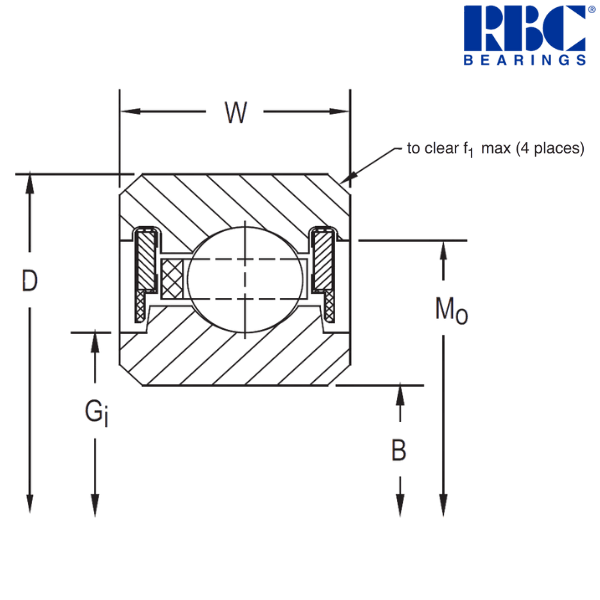

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 7.5 inch
Outside Diameter (D) - 8 inch
Width (W) - 0.25 inch
Recess Diameter (Gi) - 7.625 inch
Groove Diameter (Mo) - 7.843 inch
Housing Fillet (f1) - 0.025 inch
Ball Diameter - 0.125 inch
Ball Quantity - 93 pcs.
Approximate Weight - 0.34 lbs
Radial Static Load - 2350 lbf
Radial Dynamic Load - 890 lbf

Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (B) - 190.5 mm
Outside Diameter (D) - 203.2 mm
Width (W) - 6.35 mm
Recess Diameter (Gi) - 193.68 mm
Groove Diameter (Mo) - 199.21 mm
Housing Fillet (f1) - 0.64 mm
Approximate Weight - 0.154 kg
Radial Static Load - 10450 N
Radial Dynamic Load - 3960 N

Description of Suffixes and Prefixes :
J - 2 seals - molded rubber
A - Standard Width
C - Radial Ball Contact
P - Brass or (Composite)
0 - ABEC 1F

Other salient points about this Bearing :
• 52100 Steel
• Large Diameter
• Light Weight
• Small Cross Section
• Snap-Over Ball Separator
• Sealed
