JA065CP0 RBC

Brand - RBC
Item Number - JA065CP0*RBC
Category - Sealed (Molded) Radial Contact, C-Type Thin Section Ball Bearings

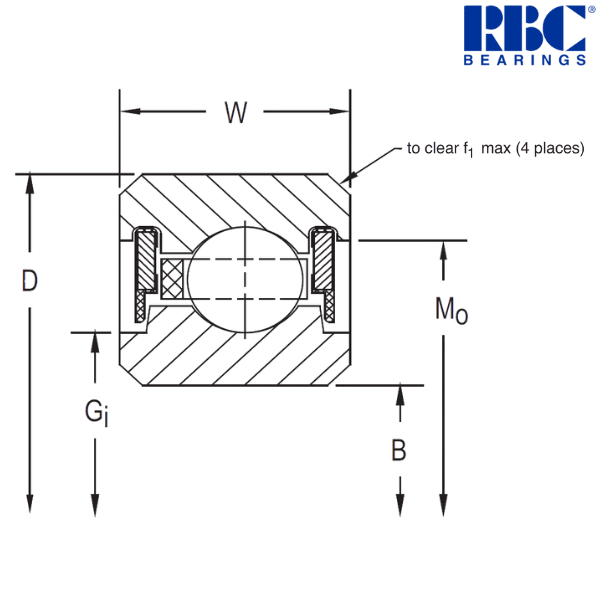

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 6.5 inch
Outside Diameter (D) - 7 inch
Width (W) - 0.25 inch
Recess Diameter (Gi) - 6.625 inch
Groove Diameter (Mo) - 6.843 inch
Housing Fillet (f1) - 0.025 inch
Ball Diameter - 0.125 inch
Ball Quantity - 81 pcs.
Approximate Weight - 0.3 lbs
Radial Static Load - 2050 lbf
Radial Dynamic Load - 850 lbf

Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (B) - 165.1 mm
Outside Diameter (D) - 177.8 mm
Width (W) - 6.35 mm
Recess Diameter (Gi) - 168.28 mm
Groove Diameter (Mo) - 173.81 mm
Housing Fillet (f1) - 0.64 mm
Approximate Weight - 0.136 kg
Radial Static Load - 9120 N
Radial Dynamic Load - 3780 N

Description of Suffixes and Prefixes :
J - 2 seals - molded rubber
A - Standard Width
C - Radial Ball Contact
P - Brass or (Composite)
0 - ABEC 1F

Other salient points about this Bearing :
• 52100 Steel
• Large Diameter
• Light Weight
• Small Cross Section
• Snap-Over Ball Separator
• Sealed
