JA047CP0 RBC

Brand - RBC
Item Number - JA047CP0*RBC
Category - Sealed (Molded) Radial Contact, C-Type Thin Section Ball Bearings

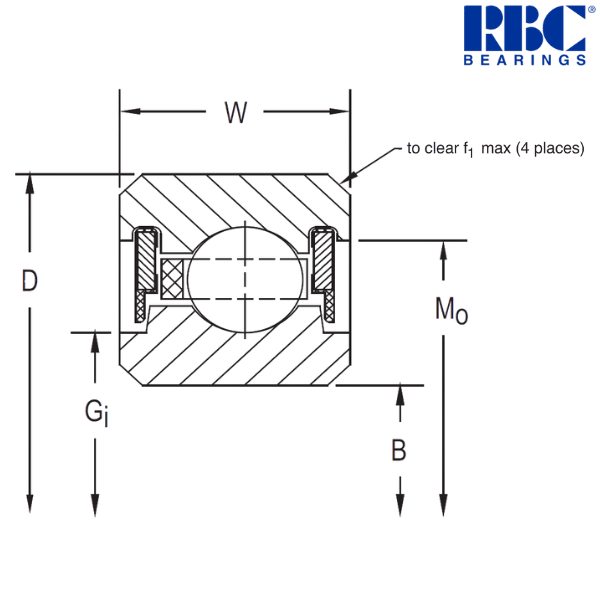

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 4.75 inch
Outside Diameter (D) - 5.25 inch
Width (W) - 0.25 inch
Recess Diameter (Gi) - 4.875 inch
Groove Diameter (Mo) - 5.093 inch
Housing Fillet (f1) - 0.025 inch
Ball Diameter - 0.125 inch
Ball Quantity - 60 pcs.
Approximate Weight - 0.23 lbs
Radial Static Load - 1520 lbf
Radial Dynamic Load - 760 lbf

Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (B) - 120.65 mm
Outside Diameter (D) - 133.35 mm
Width (W) - 6.35 mm
Recess Diameter (Gi) - 123.83 mm
Groove Diameter (Mo) - 129.36 mm
Housing Fillet (f1) - 0.64 mm
Approximate Weight - 0.104 kg
Radial Static Load - 6760 N
Radial Dynamic Load - 3380 N

Description of Suffixes and Prefixes :
J - 2 seals - molded rubber
A - Standard Width
C - Radial Ball Contact
P - Brass or (Composite)
0 - ABEC 1F

Other salient points about this Bearing :
• 52100 Steel
• Large Diameter
• Light Weight
• Small Cross Section
• Snap-Over Ball Separator
• Sealed

* The alphanumeric identification system is used under license.

♦ ♦ Images are for representation purposes only
