J07008XP0 KAYDON


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - KAYDON
Item Number - J07008XP0 KAYDON
Also Known As - KDN.J07008XP0

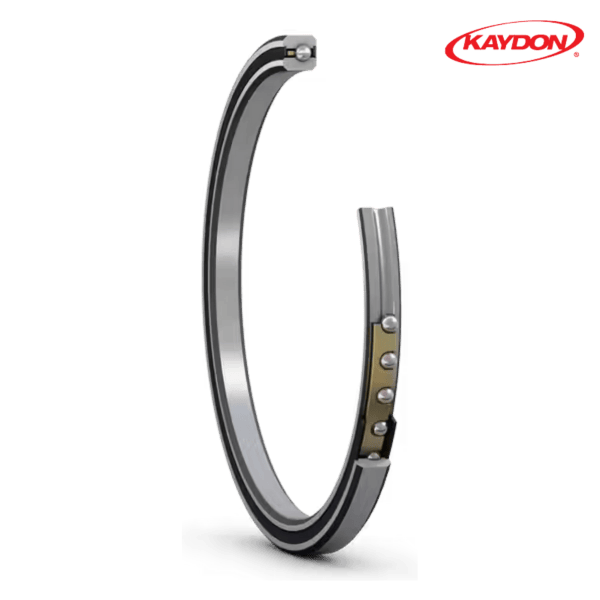

Category - Reali-Slim Thin Section Four Point Contact Ball Bearing

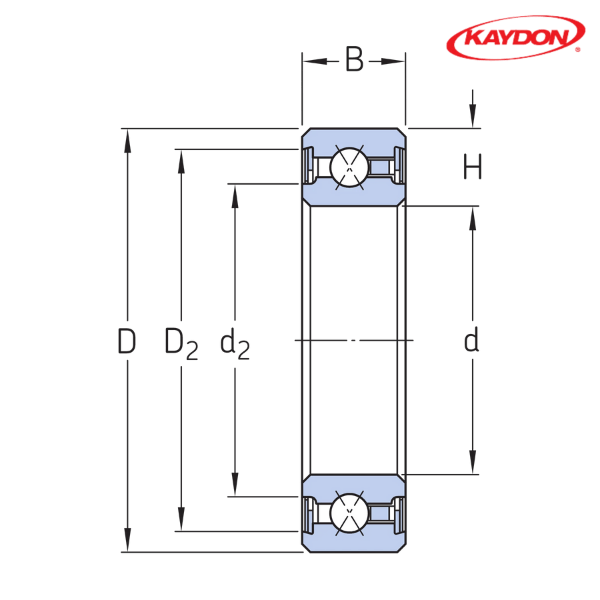

Inner Diameter (d) mm - 70
Outer Diameter (D) mm - 86
Radial Cross Section (H) mm - 8
Width (B) mm - 8.001
Dynamic Load Rating, Radial Direction (CK) kN - 5.38
Basic Static Load Rating, Radial Direction (C0) kN - 7.42
Basic Static Load Rating, Axial Direction (C0a) kN - 18.6
Basic Dynamic Load Rating, Moment (CM) kN·m - 0.158
Basic Static Load Rating, Moment (C0M) kN·m - 0.29
Weight (kg) - 0.1

** Images are for representation purposes only
