Description
Brand - IKO
Item Number - IRT 6025 IKO
Category - Inner Ring for Shell Type Needle Roller Bearing
Shaft Diameter (mm) - 60
Boundary Dimension (d) mm - 60
Boundary Dimension (F) mm - 70
Boundary Dimension (B) mm - 25.5
Minimum Boundary Dimension (rs) mm - 1.5
Minimum Standard Mounting Dimension (da) mm - 68
Maximum Standard Mounting Dimension (da) mm - 68.5
Weight (kg) - 0.2
Probable Assembled Bearings - TA 7025Z

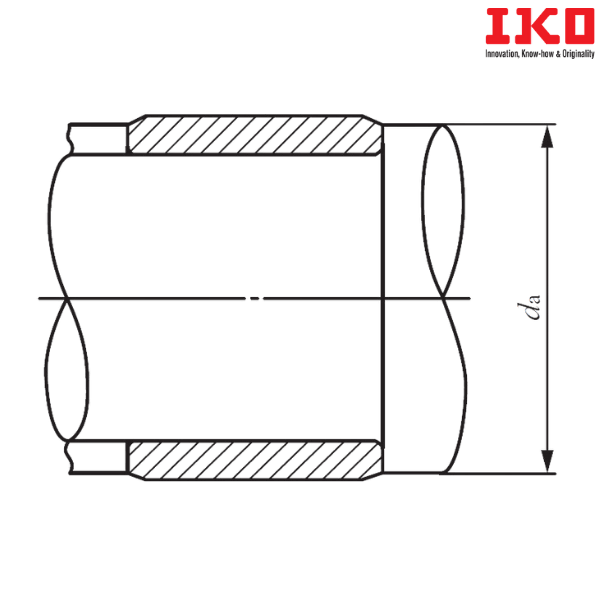

** Images are for representation purposes only
