Description
Brand - IKO
Item Number - IRT 5550 IKO
Category - Inner Ring for Shell Type Needle Roller Bearing
Shaft Diameter (mm) - 55
Boundary Dimension (d) mm - 55
Boundary Dimension (F) mm - 65
Boundary Dimension (B) mm - 50.5
Minimum Boundary Dimension (rs) mm - 1.5

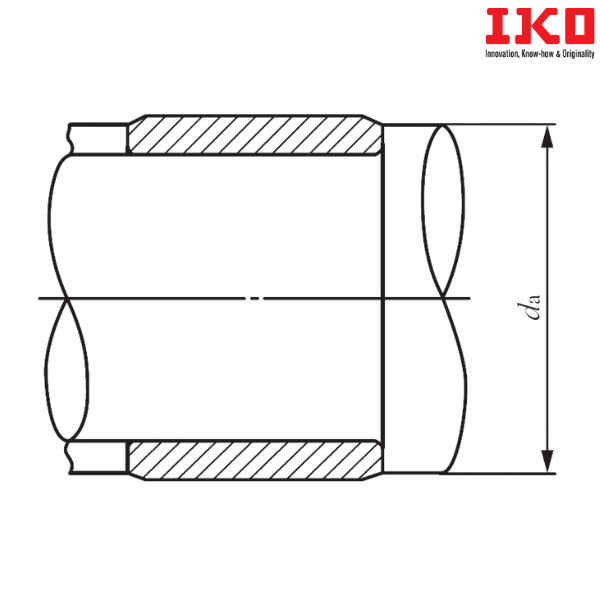

Minimum Standard Mounting Dimension (da) mm - 63
Maximum Standard Mounting Dimension (da) mm - 63.5
Weight (kg) - 0.365
Probable Assembled Bearings - TAW 6550Z
** Images are for representation purposes only
