Description
Brand - IKO
Item Number - IRT 3215-1 IKO
Category - Inner Ring for Shell Type Needle Roller Bearing
Shaft Diameter (mm) - 32
Boundary Dimension (d) mm - 32
Boundary Dimension (F) mm - 38
Boundary Dimension (B) mm - 15.5
Minimum Boundary Dimension (rs) mm - 0.6

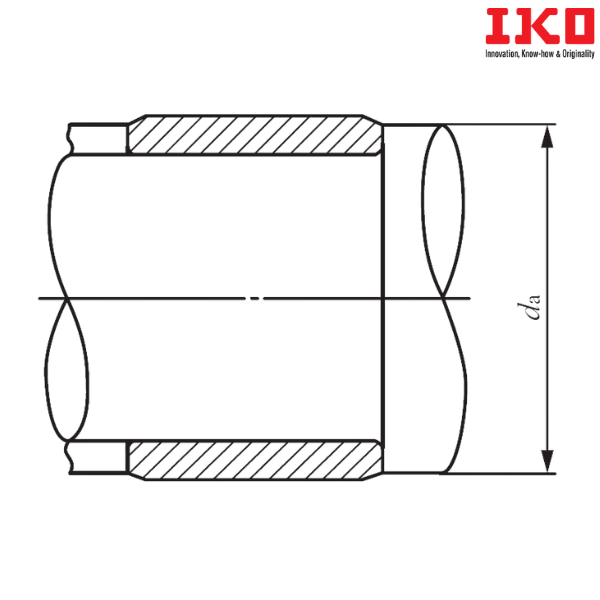

Minimum Standard Mounting Dimension (da) mm - 36
Maximum Standard Mounting Dimension (da) mm - 37
Weight (kg) - 0.0395
Probable Assembled Bearings - TA 3815Z
** Images are for representation purposes only
