Description
Brand - IKO
Item Number - IRT 3025 IKO
Category - Inner Ring for Shell Type Needle Roller Bearing
Shaft Diameter (mm) - 30
Boundary Dimension (d) mm - 30
Boundary Dimension (F) mm - 35
Boundary Dimension (B) mm - 25.5
Minimum Boundary Dimension (rs) mm - 0.6

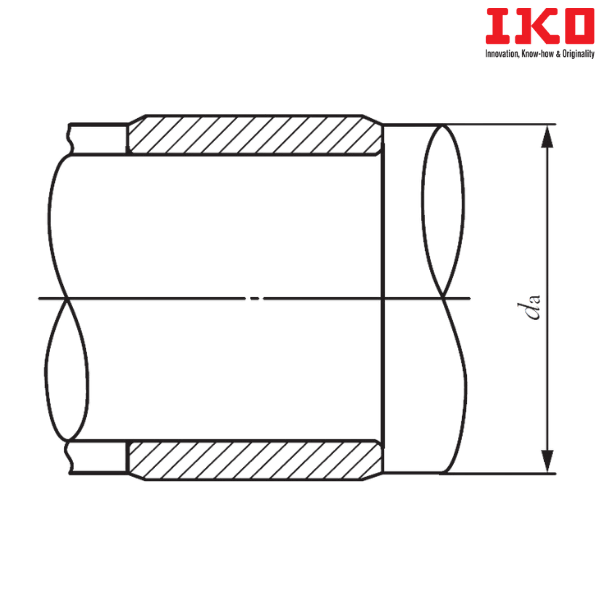

Minimum Standard Mounting Dimension (da) mm - 34
Maximum Standard Mounting Dimension (da) mm - 34.5
Weight (kg) - 0.05
Probable Assembled Bearings - TA 3525Z
** Images are for representation purposes only
