Description
Brand - IKO
Item Number - IRT 2015-1 IKO
Category - Inner Ring for Shell Type Needle Roller Bearing
Shaft Diameter (mm) - 20
Boundary Dimension (d) mm - 20
Boundary Dimension (F) mm - 25
Boundary Dimension (B) mm - 15.5
Minimum Boundary Dimension (rs) mm - 0.3

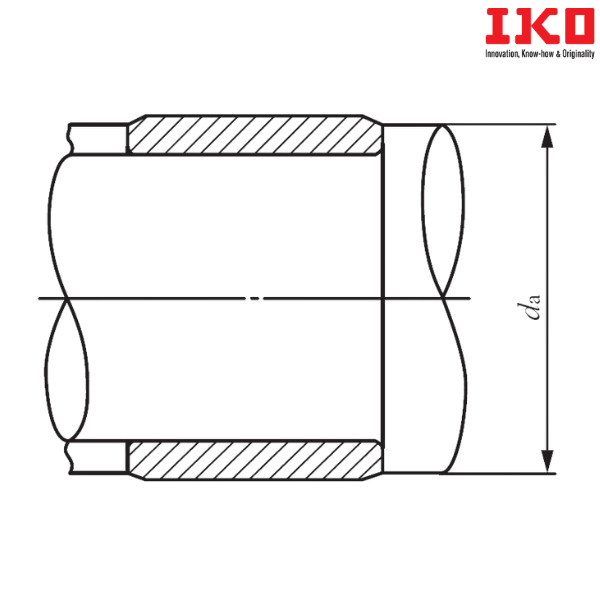

Minimum Standard Mounting Dimension (da) mm - 22
Maximum Standard Mounting Dimension (da) mm - 24
Weight (kg) - 0.021
Probable Assembled Bearings - TA 2515Z, YT 2515
** Images are for representation purposes only
