Description
Brand - IKO
Item Number - IRT 1513 IKO
Category - Inner Ring for Shell Type Needle Roller Bearing
Shaft Diameter (mm) - 15

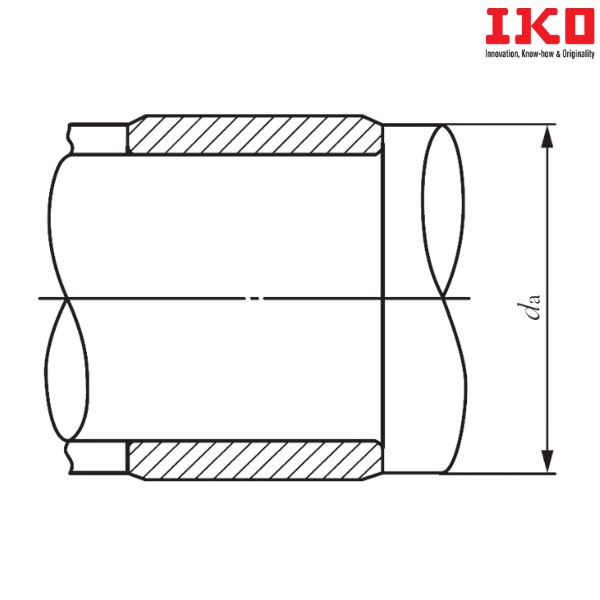

Boundary Dimension (d) mm - 15
Boundary Dimension (F) mm - 18
Boundary Dimension (B) mm - 13.5
Minimum Boundary Dimension (rs) mm - 0.3
Minimum Standard Mounting Dimension (da) mm - 17
Maximum Standard Mounting Dimension (da) mm - 17.5
Weight (kg) - 0.0081
Probable Assembled Bearings - TA 1813Z
** Images are for representation purposes only
