IRT 1512 IKO


Country Of Origin: JAPAN
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - IKO
Item Number - IRT 1512 IKO
Category - Inner Ring for Shell Type Needle Roller Bearing
Shaft Diameter (mm) - 15
Boundary Dimension (d) mm - 15
Boundary Dimension (F) mm - 18
Boundary Dimension (B) mm - 12.5
Minimum Boundary Dimension (rs) mm - 0.3
Minimum Standard Mounting Dimension (da) mm - 17
Maximum Standard Mounting Dimension (da) mm - 17.5
Weight (kg) - 0.0075
Probable Assembled Bearings - TLA 1812Z

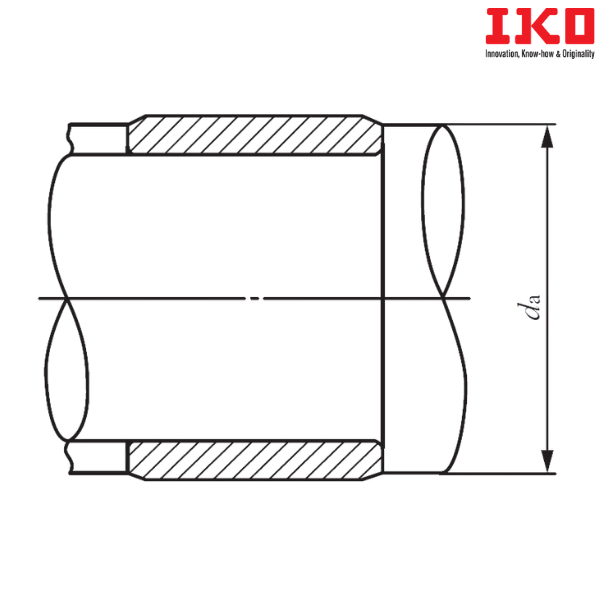

** Images are for representation purposes only
