Description
Brand - IKO
Item Number - IRT 1012 IKO
Category - Inner Ring for Shell Type Needle Roller Bearing
Shaft Diameter (mm) - 10

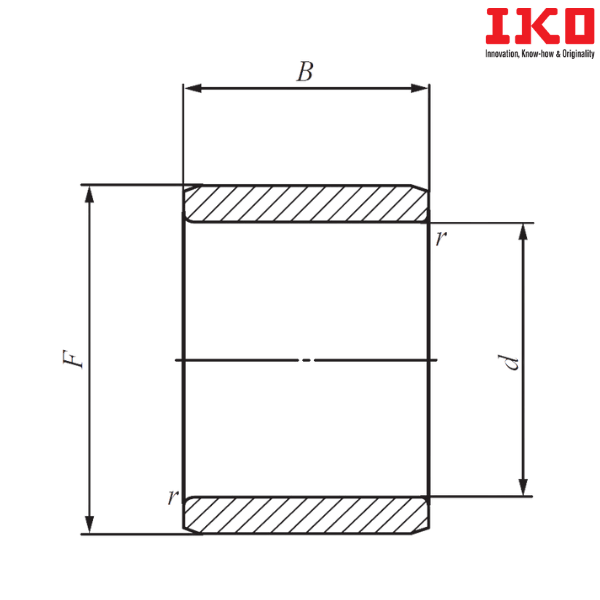

Boundary Dimension (d) mm - 10
Boundary Dimension (F) mm - 13
Boundary Dimension (B) mm - 12.5
Minimum Boundary Dimension (rs) mm - 0.3
Minimum Standard Mounting Dimension (da) mm - 12
Maximum Standard Mounting Dimension (da) mm - 12.7
Weight (kg) - 0.0052
Probable Assembled Bearings - TLA 1312Z

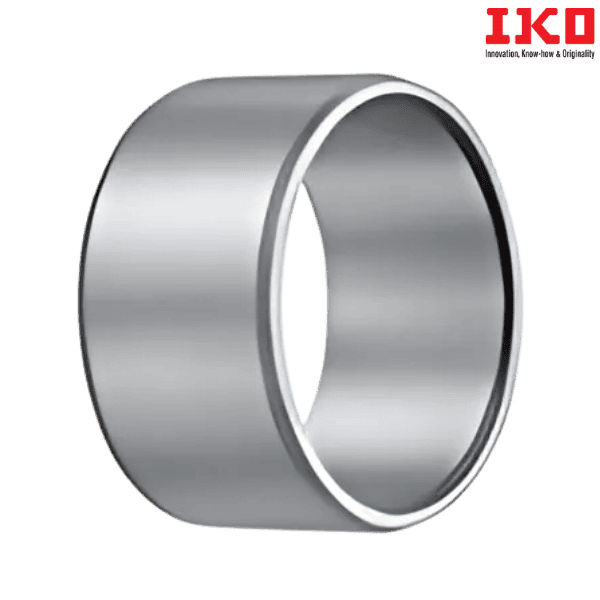

** Images are for representation purposes only
