Description
Brand - IKO
Item Number - IRT 1010-1 IKO
Category - Inner Ring for Shell Type Needle Roller Bearing
Shaft Diameter (mm) - 10
Boundary Dimension (d) mm - 10
Boundary Dimension (F) mm - 15
Boundary Dimension (B) mm - 10.5
Minimum Boundary Dimension (rs) mm - 0.3

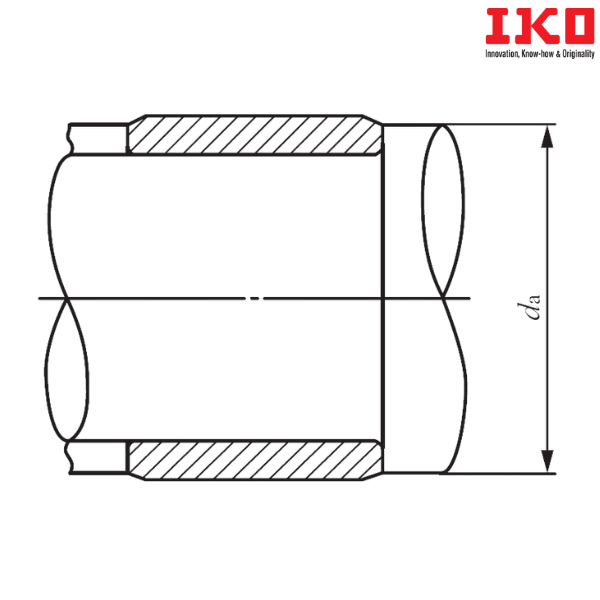

Minimum Standard Mounting Dimension (da) mm - 12
Maximum Standard Mounting Dimension (da) mm - 14
Weight (kg) - 0.0079
Probable Assembled Bearings - TA 1510Z
** Images are for representation purposes only
