Description
Brand - IKO
Item Number - IRB 920 IKO
Category - Inner Ring for Shell Type Needle Roller Bearing Inch Series
Shaft Diameter (mm) - 14.288
Shaft Diameter (inch) - 0.5625

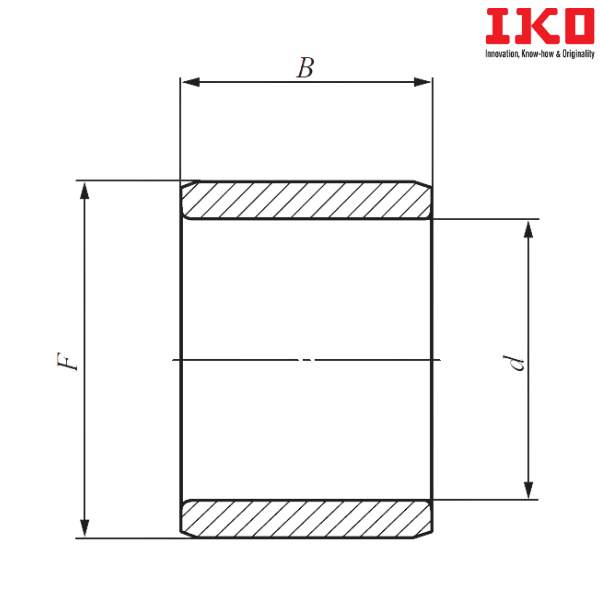

Boundary Dimension (d) mm - 14.288
Boundary Dimension (d) inch - 0.5625
Boundary Dimension (F) mm - 20.638
Boundary Dimension (F) inch - 0.8125
Boundary Dimension (B) mm - 32.13
Minimum Standard Mounting Dimension (da) mm - 19
Maximum Standard Mounting Dimension (da) mm - 19.6
Maximum Standard Mounting Dimension (ras) mm - 0.6
Weight (kg) - 0.043
Probable Assembled Bearings - BA 1320Z

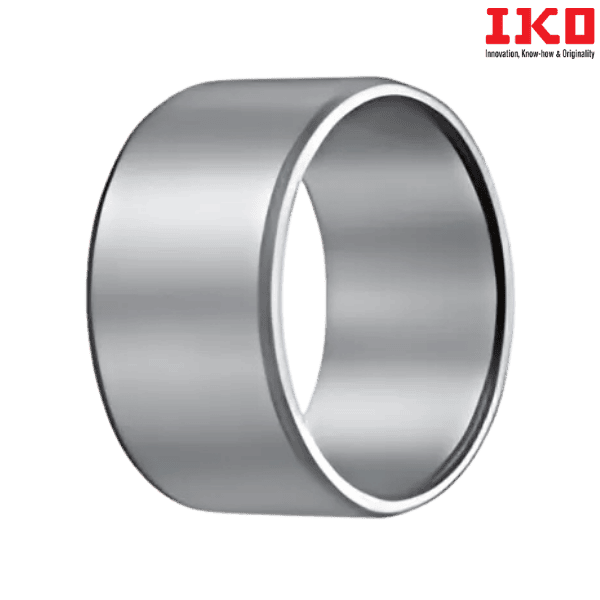

** Images are for representation purposes only
