Description
Brand - IKO
Item Number - IRB 88 IKO
Category - Inner Ring for Shell Type Needle Roller Bearing Inch Series
Shaft Diameter (mm) - 12.7
Shaft Diameter (inch) - 0.5

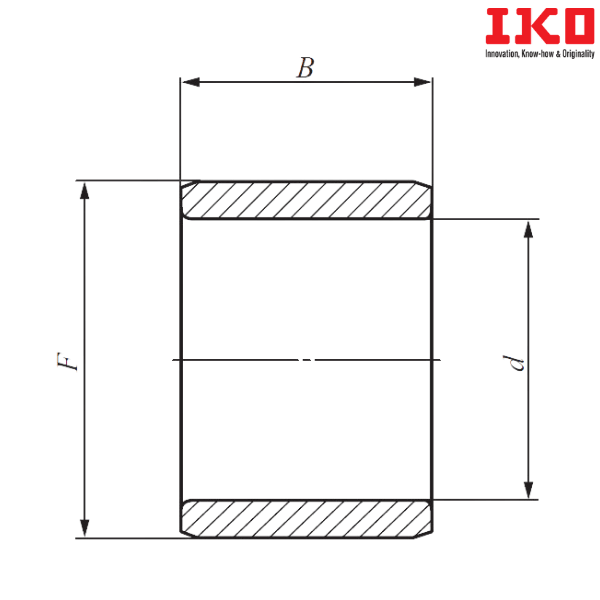

Boundary Dimension (d) mm - 12.7
Boundary Dimension (d) inch - 0.5
Boundary Dimension (F) mm - 17.462
Boundary Dimension (F) inch - 0.6875
Boundary Dimension (B) mm - 13.08
Minimum Standard Mounting Dimension (da) mm - 16.9
Maximum Standard Mounting Dimension (da) mm - 16.9
Maximum Standard Mounting Dimension (ras) mm - 0.3
Weight (kg) - 0.0112
Probable Assembled Bearings - BA 118Z, BHA 118Z

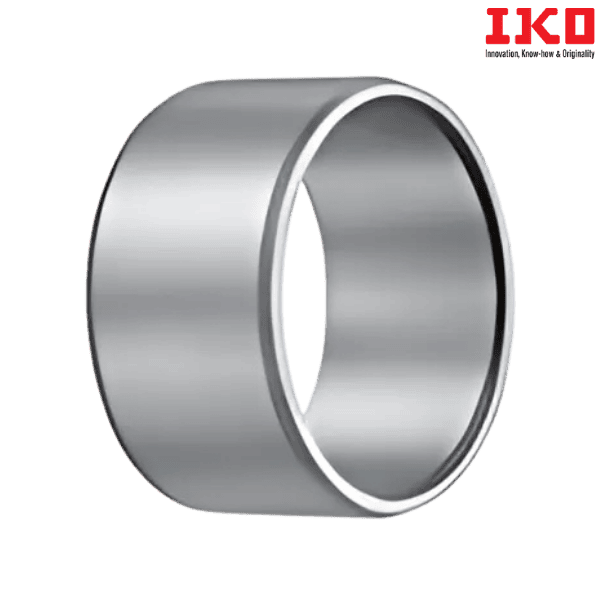

** Images are for representation purposes only
