Description
Brand - IKO
Item Number - IRB 816-1 IKO
Category - Inner Ring for Shell Type Needle Roller Bearing Inch Series
Shaft Diameter (mm) - 12.7
Shaft Diameter (inch) - 0.5

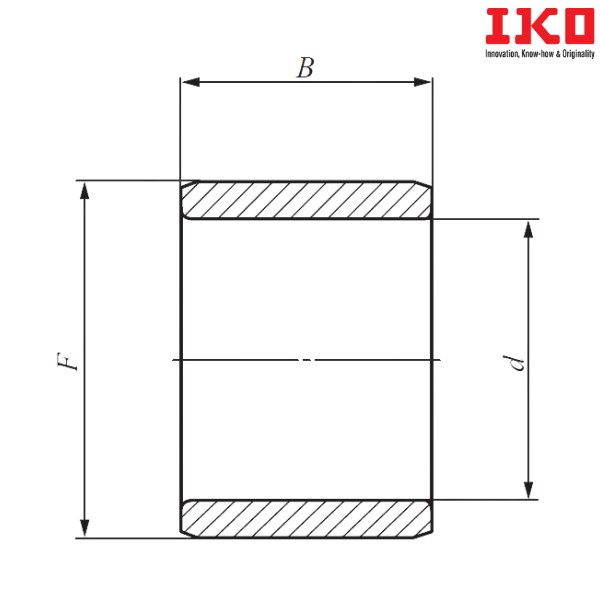

Boundary Dimension (d) mm - 12.7
Boundary Dimension (d) inch - 0.5
Boundary Dimension (F) mm - 19.05
Boundary Dimension (F) inch - 0.75
Boundary Dimension (B) mm - 25.78
Minimum Standard Mounting Dimension (da) mm - 16.9
Maximum Standard Mounting Dimension (da) mm - 17.5
Maximum Standard Mounting Dimension (ras) mm - 0.6
Weight (kg) - 0.031
Probable Assembled Bearings - BA 1216Z

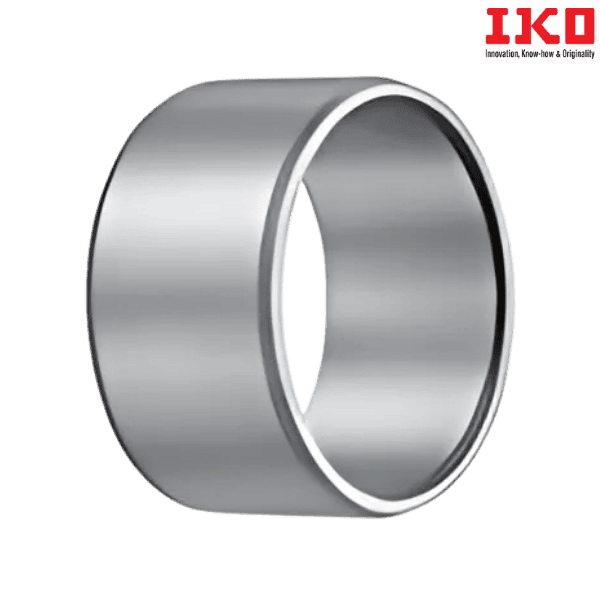

** Images are for representation purposes only
