Description
Brand - IKO
Item Number - IRB 714 IKO

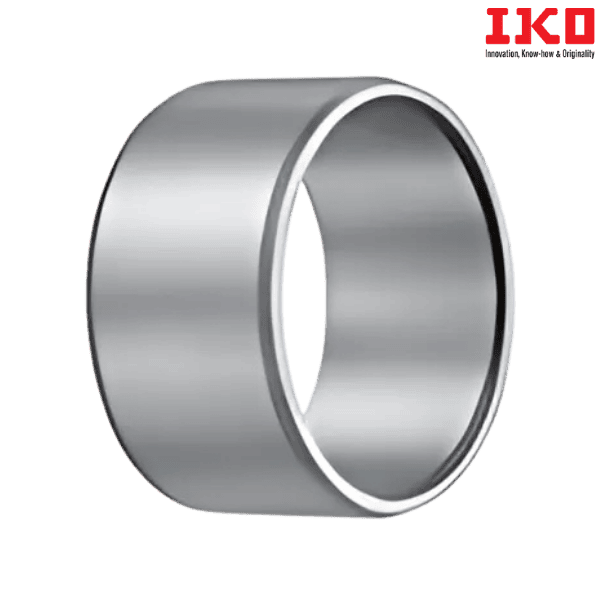

Category - Inner Ring for Shell Type Needle Roller Bearing Inch Series
Shaft Diameter (mm) - 11.112
Shaft Diameter (inch) - 0.4375

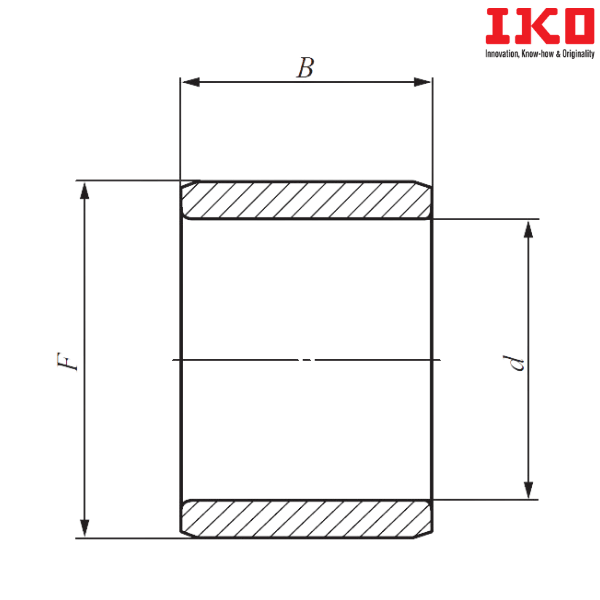

Boundary Dimension (d) mm - 11.112
Boundary Dimension (d) inch - 0.4375
Boundary Dimension (F) mm - 15.875
Boundary Dimension (F) inch - 0.625
Boundary Dimension (B) mm - 22.6

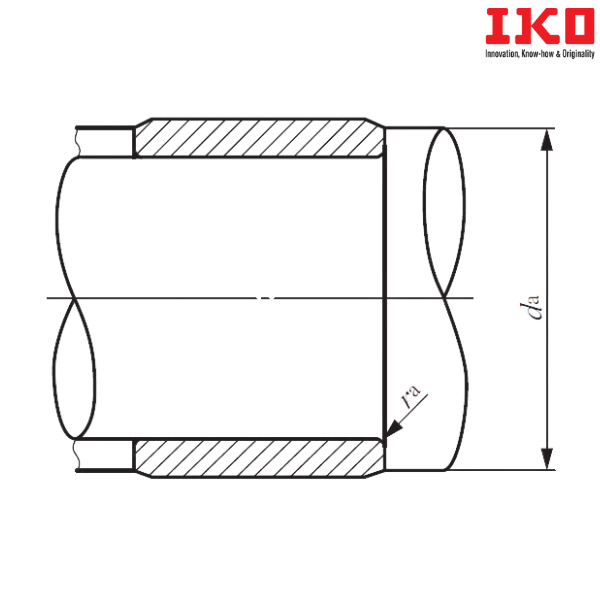

Minimum Standard Mounting Dimension (da) mm - 14.4
Maximum Standard Mounting Dimension (da) mm - 14.8
Maximum Standard Mounting Dimension (ras) mm - 0.3
Weight (kg) - 0.0174
Probable Assembled Bearings - BA 1014Z
** Images are for representation purposes only
