Description
Brand - IKO
Item Number - IRB 612 IKO
Category - Inner Ring for Shell Type Needle Roller Bearing Inch Series
Shaft Diameter (mm) - 9.525
Shaft Diameter (inch) - 0.375

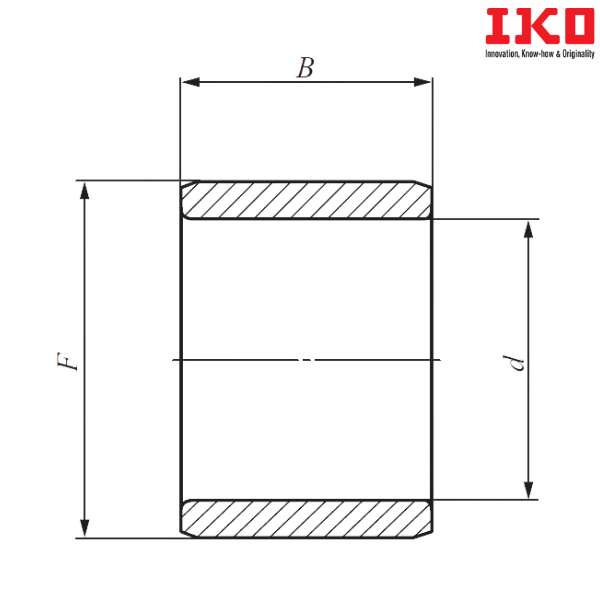

Boundary Dimension (d) mm - 9.525
Boundary Dimension (d) inch - 0.375
Boundary Dimension (F) mm - 14.288
Boundary Dimension (F) inch - 0.5625
Boundary Dimension (B) mm - 19.43

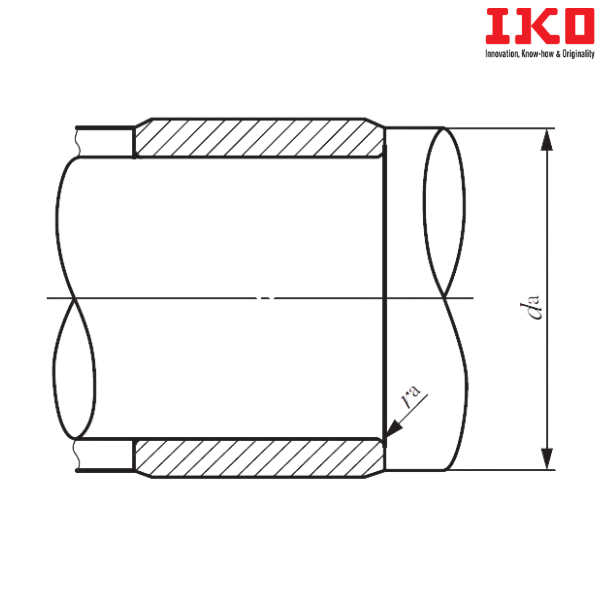

Minimum Standard Mounting Dimension (da) mm - 12.8
Maximum Standard Mounting Dimension (da) mm - 13.2
Maximum Standard Mounting Dimension (ras) mm - 0.3
Weight (kg) - 0.0132
Probable Assembled Bearings - BA 912Z, YB 912
** Images are for representation purposes only
