Description
Brand - IKO
Item Number - IRB 612-1 IKO
Category - Inner Ring for Shell Type Needle Roller Bearing Inch Series
Shaft Diameter (mm) - 9.525
Shaft Diameter (inch) - 0.375

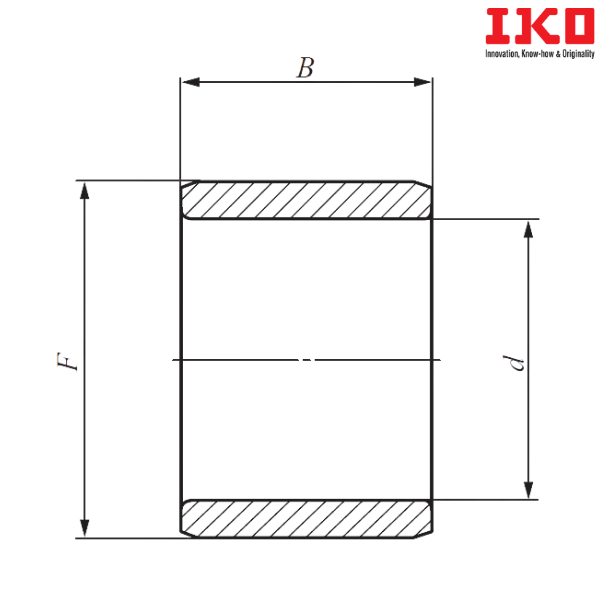

Boundary Dimension (d) mm - 9.525
Boundary Dimension (d) inch - 0.375
Boundary Dimension (F) mm - 15.875
Boundary Dimension (F) inch - 0.625
Boundary Dimension (B) mm - 19.43
Minimum Standard Mounting Dimension (da) mm - 12.8
Maximum Standard Mounting Dimension (da) mm - 14
Maximum Standard Mounting Dimension (ras) mm - 0.3
Weight (kg) - 0.0188
Probable Assembled Bearings - BA 1012Z, BHA 1012Z, YB 1012

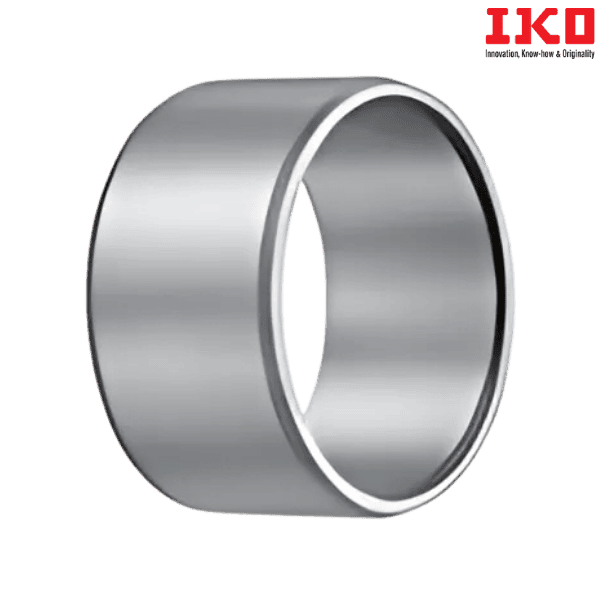

** Images are for representation purposes only
