Description
Brand - IKO
Item Number - IRB 4016 IKO
Category - Inner Ring for Shell Type Needle Roller Bearing Inch Series
Shaft Diameter (mm) - 63.5
Shaft Diameter (inch) - 2.5

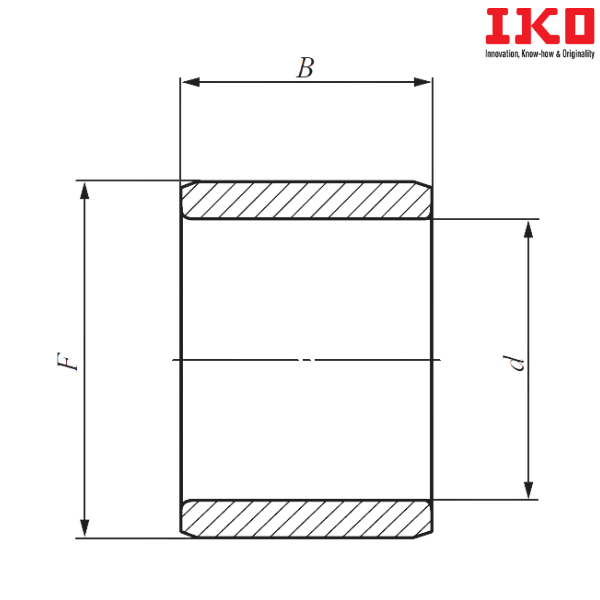

Boundary Dimension (d) mm - 63.5
Boundary Dimension (d) inch - 2.5
Boundary Dimension (F) mm - 69.85
Boundary Dimension (F) inch - 2.75
Boundary Dimension (B) mm - 25.78
Minimum Standard Mounting Dimension (da) mm - 68.7
Maximum Standard Mounting Dimension (da) mm - 68.8
Maximum Standard Mounting Dimension (ras) mm - 0.6
Weight (kg) - 0.131
Probable Assembled Bearings - BA 4416Z

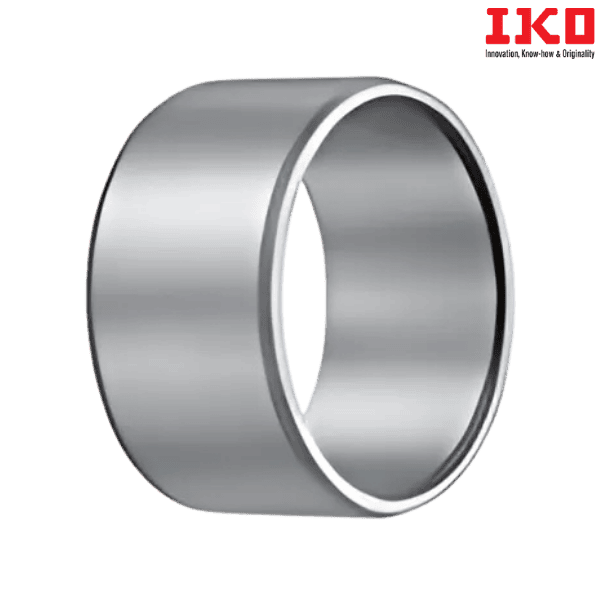

** Images are for representation purposes only
