Description
Brand - IKO
Item Number - IRB 3616 IKO
Category - Inner Ring for Shell Type Needle Roller Bearing Inch Series
Shaft Diameter (mm) - 57.15
Shaft Diameter (inch) - 2.25

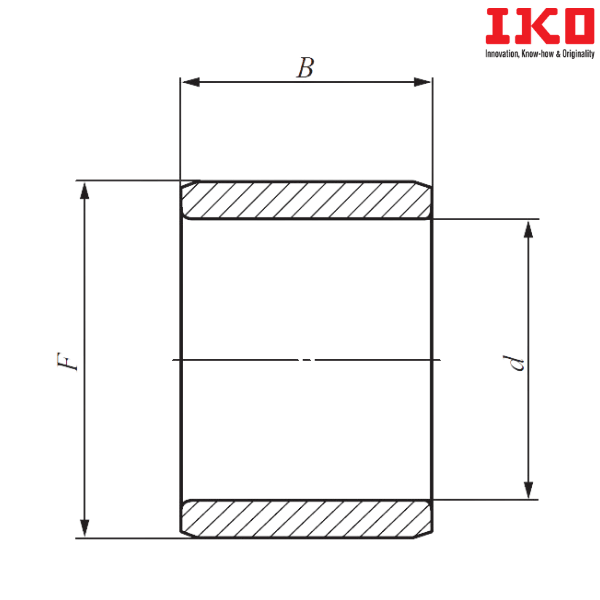

Boundary Dimension (d) mm - 57.15
Boundary Dimension (d) inch - 2.25
Boundary Dimension (F) mm - 66.675
Boundary Dimension (F) inch - 2.625
Boundary Dimension (B) mm - 25.78
Minimum Standard Mounting Dimension (da) mm - 63.5
Maximum Standard Mounting Dimension (da) mm - 64.5
Maximum Standard Mounting Dimension (ras) mm - 1
Weight (kg) - 0.183
Probable Assembled Bearings - BA 4216Z

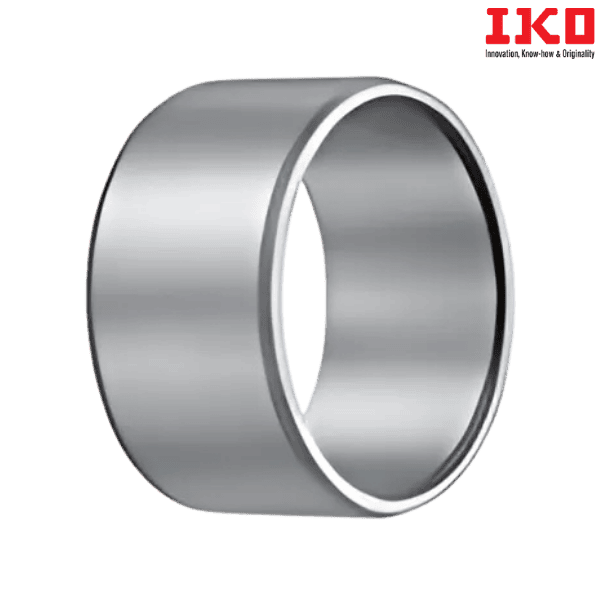

** Images are for representation purposes only
