Description
Brand - IKO
Item Number - IRB 2628 IKO

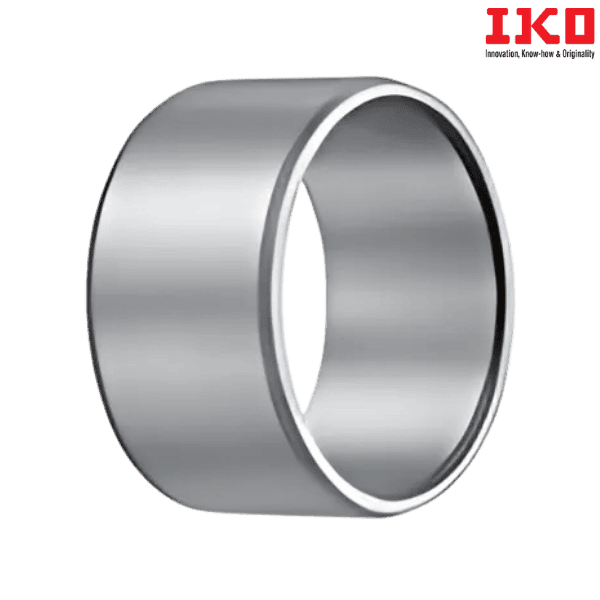

Category - Inner Ring for Shell Type Needle Roller Bearing Inch Series
Shaft Diameter (mm) - 41.275
Shaft Diameter (inch) - 1.625

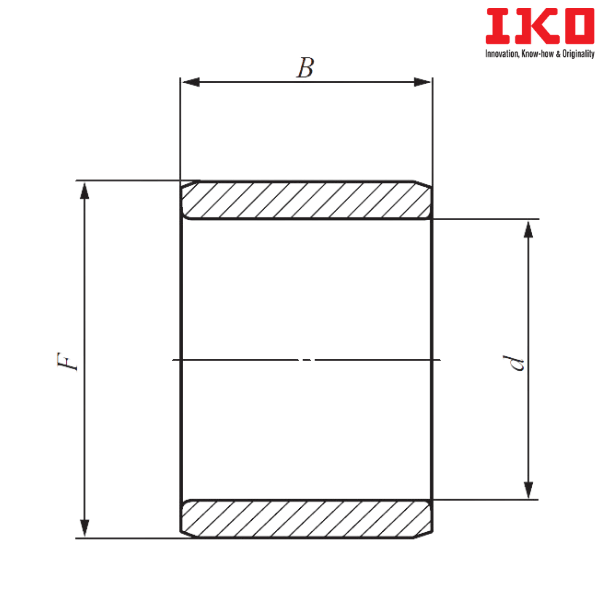

Boundary Dimension (d) mm - 41.275
Boundary Dimension (d) inch - 1.625
Boundary Dimension (F) mm - 50.8
Boundary Dimension (F) inch - 2
Boundary Dimension (B) mm - 44.83

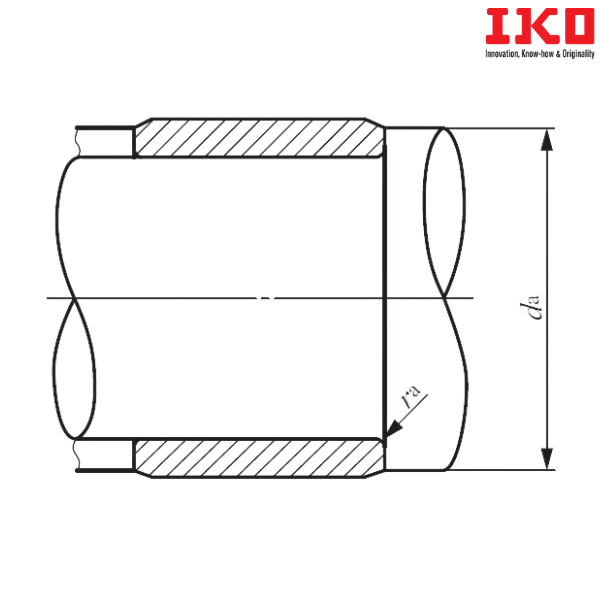

Minimum Standard Mounting Dimension (da) mm - 47.5
Maximum Standard Mounting Dimension (da) mm - 48.5
Maximum Standard Mounting Dimension (ras) mm - 1
Weight (kg) - 0.235
Probable Assembled Bearings - BAW 3228Z
** Images are for representation purposes only
