IRB 2416 IKO


Country Of Origin: JAPAN
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - IKO
Item Number - IRB 2416 IKO
Category - Inner Ring for Shell Type Needle Roller Bearing Inch Series
Shaft Diameter (mm) - 38.1
Shaft Diameter (inch) - 1.5
Boundary Dimension (d) mm - 38.1
Boundary Dimension (d) inch - 1.5
Boundary Dimension (F) mm - 44.45
Boundary Dimension (F) inch - 1.75
Boundary Dimension (B) mm - 25.78
Minimum Standard Mounting Dimension (da) mm - 43.3
Maximum Standard Mounting Dimension (da) mm - 43.4
Maximum Standard Mounting Dimension (ras) mm - 0.6
Weight (kg) - 0.081
Probable Assembled Bearings - BA 2816Z, YB 2816

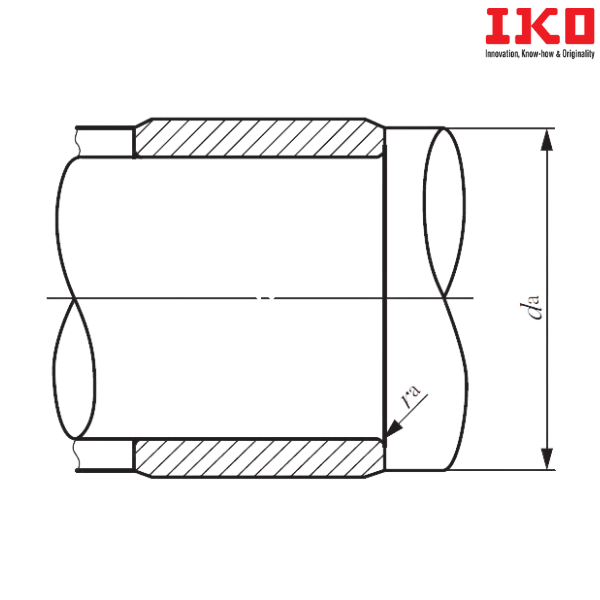

** Images are for representation purposes only
