Description
Brand - IKO
Item Number - IRB 2410-1 IKO
Category - Inner Ring for Shell Type Needle Roller Bearing Inch Series
Shaft Diameter (mm) - 38.1
Shaft Diameter (inch) - 1.5

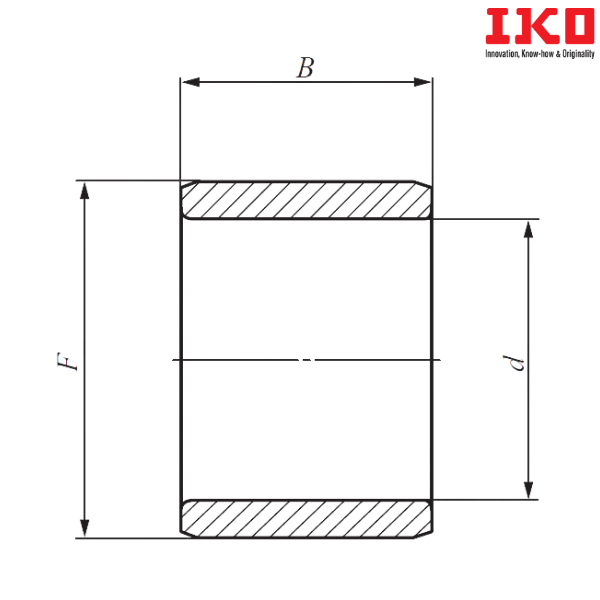

Boundary Dimension (d) mm - 38.1
Boundary Dimension (d) inch - 1.5
Boundary Dimension (F) mm - 47.625
Boundary Dimension (F) inch - 1.875
Boundary Dimension (B) mm - 16.25

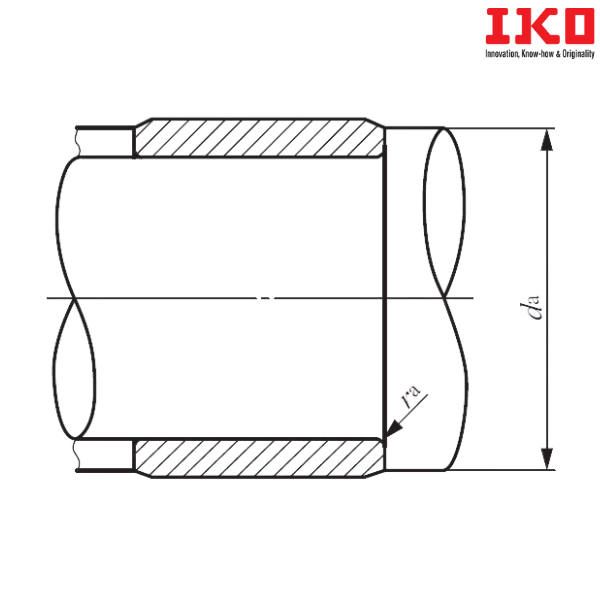

Minimum Standard Mounting Dimension (da) mm - 44.5
Maximum Standard Mounting Dimension (da) mm - 45.5
Maximum Standard Mounting Dimension (ras) mm - 1
Weight (kg) - 0.0795
Probable Assembled Bearings - BA 3010Z

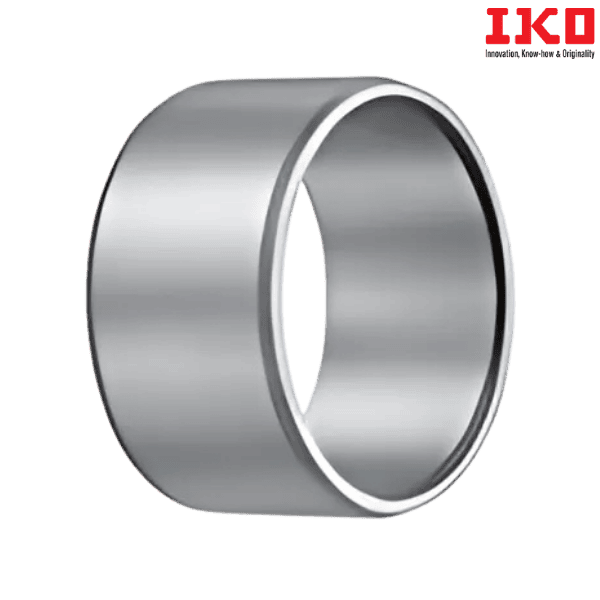

** Images are for representation purposes only
