Description
Brand - IKO
Item Number - IRB 1816 IKO

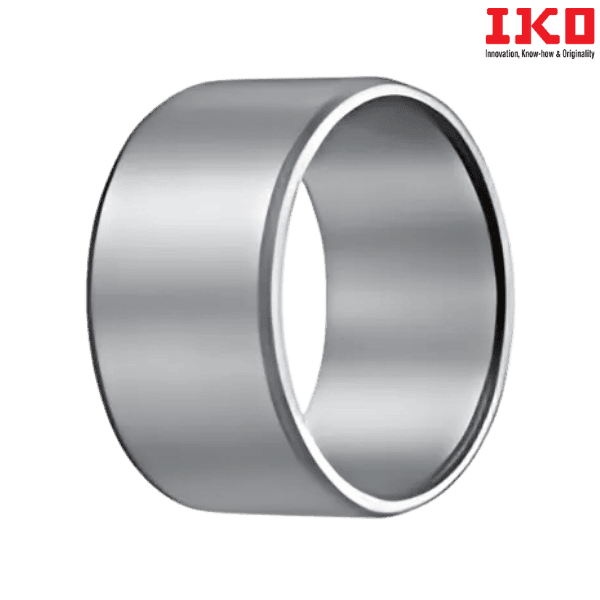

Category - Inner Ring for Shell Type Needle Roller Bearing Inch Series
Shaft Diameter (mm) - 28.575
Shaft Diameter (inch) - 1.125

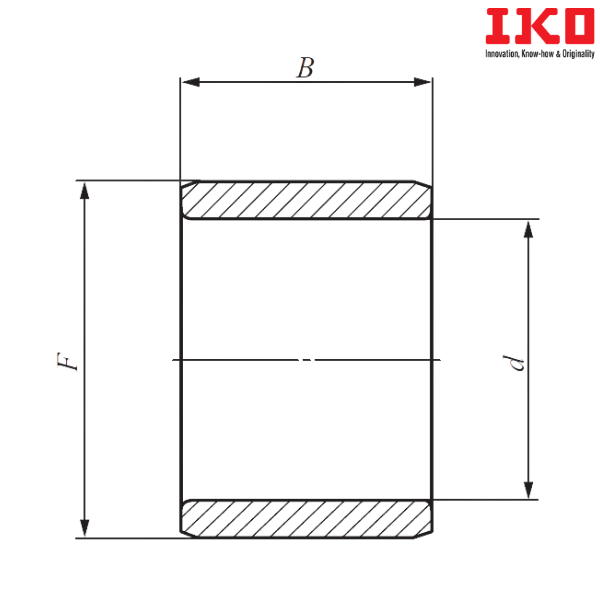

Boundary Dimension (d) mm - 28.575
Boundary Dimension (d) inch - 1.125
Boundary Dimension (F) mm - 34.925
Boundary Dimension (F) inch - 1.375
Boundary Dimension (B) mm - 25.78
Minimum Standard Mounting Dimension (da) mm - 33.2
Maximum Standard Mounting Dimension (da) mm - 33.9
Maximum Standard Mounting Dimension (ras) mm - 0.6
Weight (kg) - 0.0625
Probable Assembled Bearings - BA 2216Z, BHA 2216Z
** Images are for representation purposes only
