IRB 1616 IKO


Country Of Origin: JAPAN
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - IKO
Item Number - IRB 1616 IKO
Category - Inner Ring for Shell Type Needle Roller Bearing Inch Series
Shaft Diameter (mm) - 25.4
Shaft Diameter (inch) - 1
Boundary Dimension (d) mm - 25.4
Boundary Dimension (d) inch - 1
Boundary Dimension (F) mm - 31.75
Boundary Dimension (F) inch - 1.25
Boundary Dimension (B) mm - 25.78

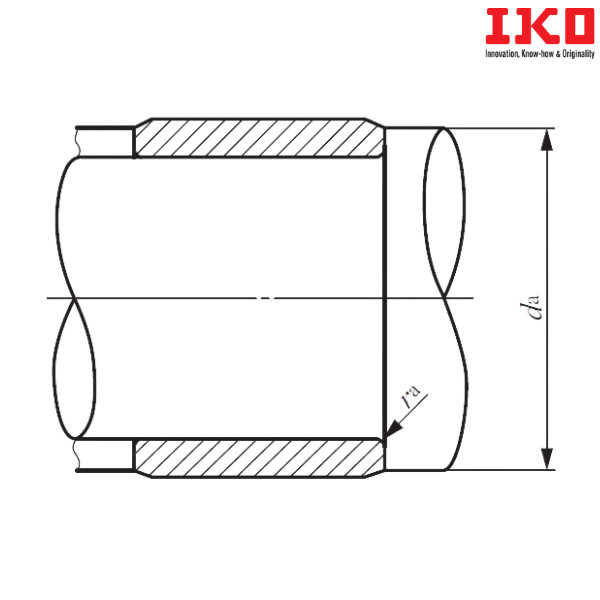

Minimum Standard Mounting Dimension (da) mm - 30
Maximum Standard Mounting Dimension (da) mm - 30.7
Maximum Standard Mounting Dimension (ras) mm - 0.6
Weight (kg) - 0.056
Probable Assembled Bearings - BA 2016Z, BHA 2016Z, YB 2016

** Images are for representation purposes only
