IRB 1214 IKO


Country Of Origin: JAPAN
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - IKO
Item Number - IRB 1214 IKO
Category - Inner Ring for Shell Type Needle Roller Bearing Inch Series
Shaft Diameter (mm) - 19.05
Shaft Diameter (inch) - 0.75

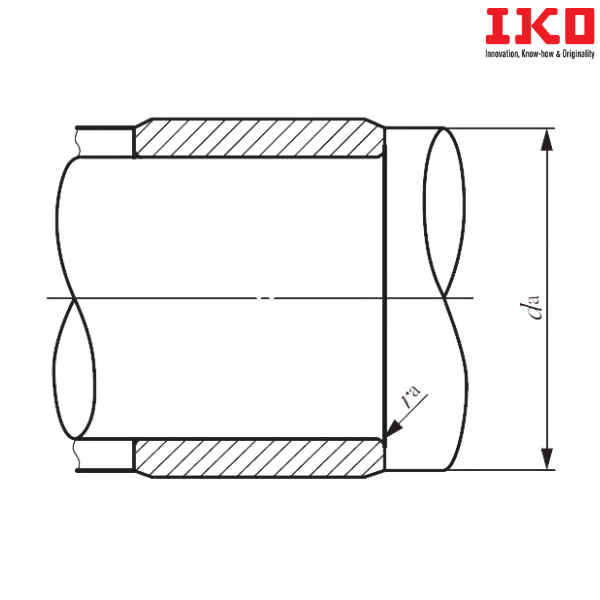

Boundary Dimension (d) mm - 19.05
Boundary Dimension (d) inch - 0.75
Boundary Dimension (F) mm - 25.4
Boundary Dimension (F) inch - 1
Boundary Dimension (B) mm - 22.6
Minimum Standard Mounting Dimension (da) mm - 23.9
Maximum Standard Mounting Dimension (da) mm - 24.4
Maximum Standard Mounting Dimension (ras) mm - 0.6
Weight (kg) - 0.0385
Probable Assembled Bearings - BA 1614Z, BHA 1614Z

** Images are for representation purposes only
