IRB 1116 IKO


Country Of Origin: JAPAN
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - IKO
Item Number - IRB 1116 IKO
Category - Inner Ring for Shell Type Needle Roller Bearing Inch Series
Shaft Diameter (mm) - 17.462
Shaft Diameter (inch) - 0.6875
Boundary Dimension (d) mm - 17.462
Boundary Dimension (d) inch - 0.6875
Boundary Dimension (F) mm - 23.812
Boundary Dimension (F) inch - 0.9375
Boundary Dimension (B) mm - 25.78

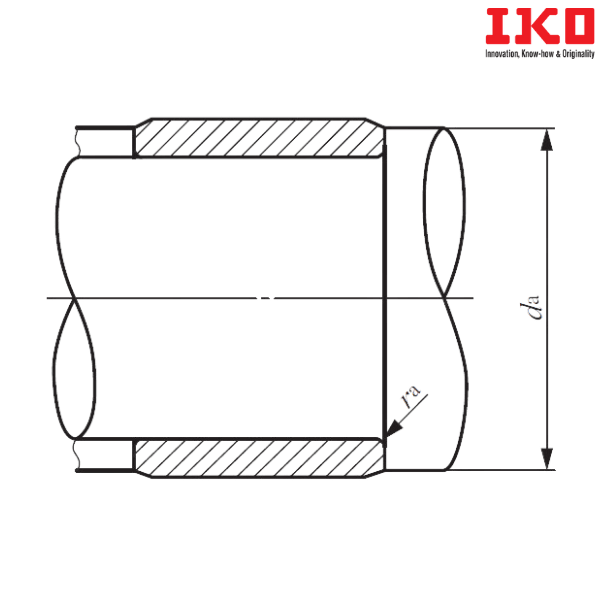

Minimum Standard Mounting Dimension (da) mm - 22.3
Maximum Standard Mounting Dimension (da) mm - 22.8
Maximum Standard Mounting Dimension (ras) mm - 0.6
Weight (kg) - 0.0405
Probable Assembled Bearings - BA 1516Z

** Images are for representation purposes only
