Description
Brand - ZEN
Item Number - IR612-OH ZEN
Category - IR Inner Ring Inch Series

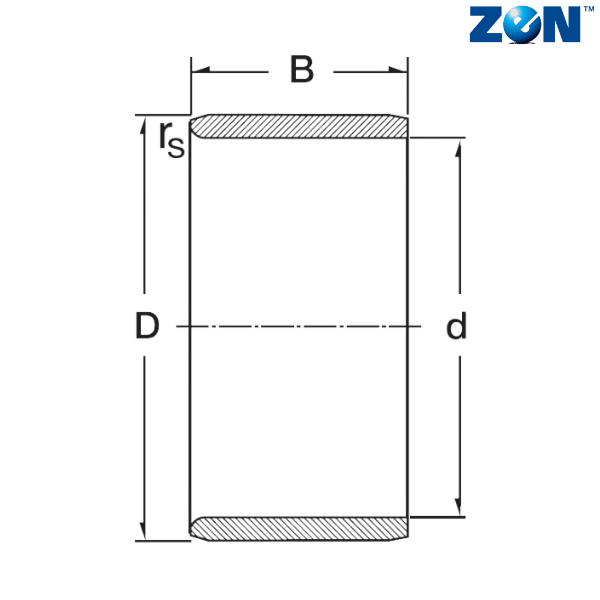

Inner Ring Dimension (d) mm - 9.52
Inner Ring Dimension (d) inch - 0.3748
Outer Ring Dimension (D) mm - 14.28
Outer Ring Dimension (D) inch - 0.5622
Width (B) mm - 19.43
Width (B) inch - 0.765
Shaft Diameter (mm) - 0.3748

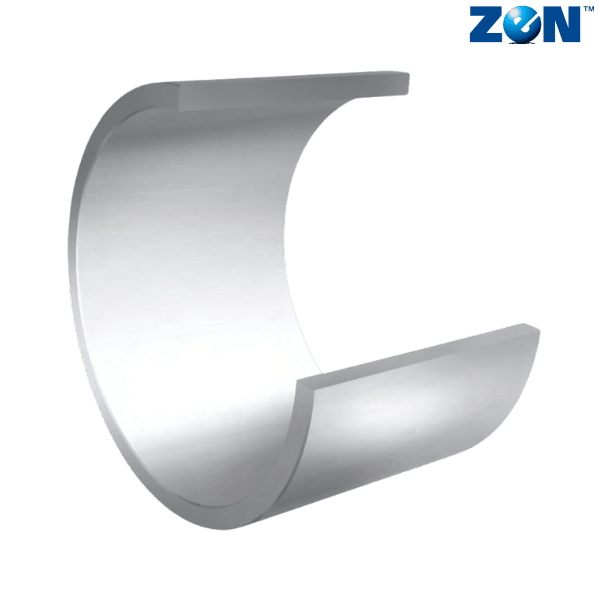

** Images are for representation purposes only
