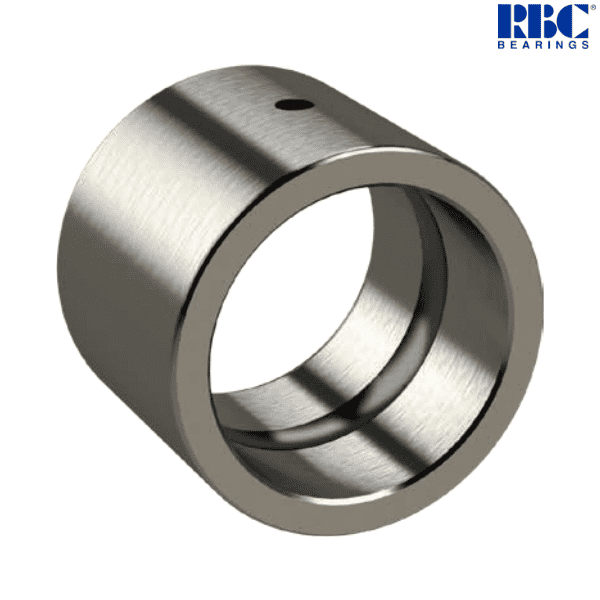

IR 8405 RBC

RBC

Download Data Sheet

Country Of Origin: USA

Variant

Share this product

Brand - RBC
Item Number - IR 8405 RBC
Also Known As - IR8405

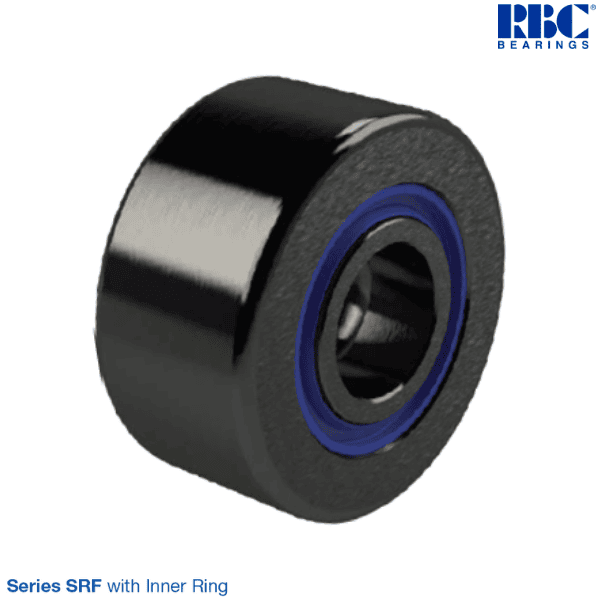

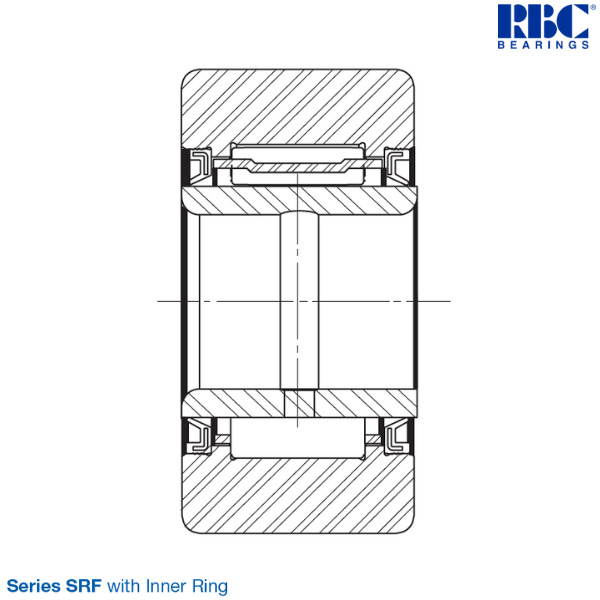

Matching Roller Followers - SRF 80
Category - Precision Ground Inner Rings

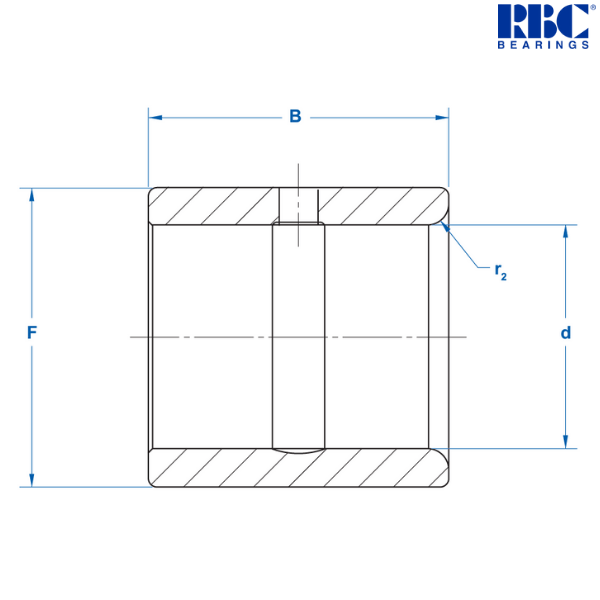

Principal Dimensions & Load Ratings (Imperial) :
Nominal Inside Diameter (d) - 1.75 inch
Minimum Inside Diameter (d) - 1.7495 inch
Maximum Inside Diameter (d) - 1.75 inch
Nominal Outside Diameter (F) - 2.25 inch
Maximum Outside Diameter (F) - 2.2489 inch
Minimum Outside Diameter (F) - 2.2482 inch
Width (B) - 1.26 (+ .000 to - .005) inch
Maximum Shaft Fillet (r2) - 0.06 inch
Approximate Weight - 0.544 lbs
Maximum Transition Fit - ISO g6 - 1.7496 inch
Minimum Transition Fit - ISO g6 - 1.749 inch
Transition Fit - ISO g6 (Mean Fit) - .0004L inch
Maximum Press Fit - ISO m5 - 1.7508 inch
Minimum Press Fit - ISO m5 - 1.7504 inch
Press Fit - ISO m5 (Mean Fit) - .0008T inch

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 0.247 kg

Other salient points to be noted :
• For Use with Caged Roller Followers

♦ ♦ Images are for representation purposes only
