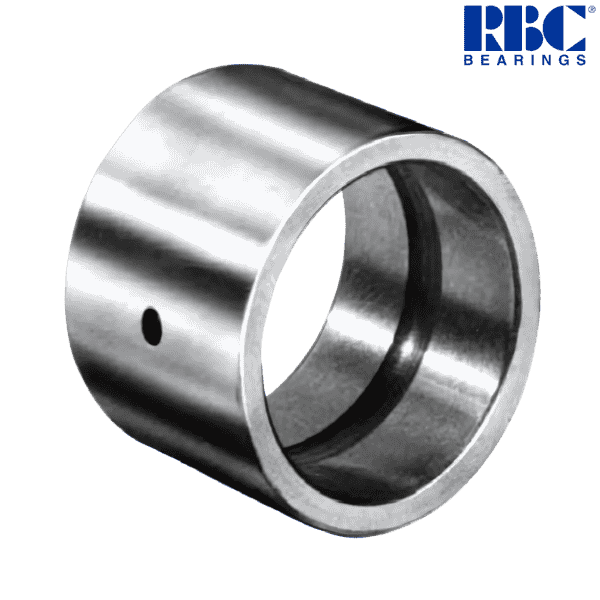

IR 7355 RBC

RBC

Download Data Sheet

Country Of Origin: USA

Variant

Share this product

Brand - RBC
Item Number - IR 7355 RBC
Category - Inner Ring

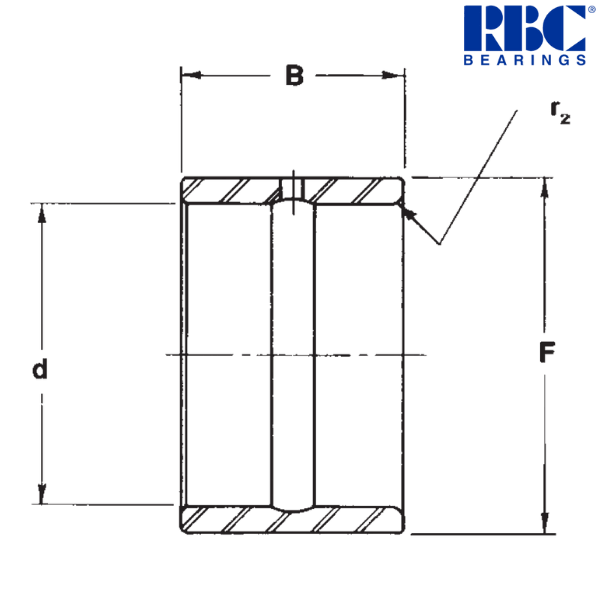

Principal Dimensions & Load Ratings (Imperial) :
Nominal Inside Diameter (d) * - 1.6875 inch
Minimum Inside Diameter (d) - 1.687 inch
Maximum Inside Diameter (d) - 1.6875 inch
Nominal Outside Diameter (F) * - 2 inch
Maximum Outside Diameter (F) - 1.9989 inch
Minimum Outside Diameter (F) - 1.9982 inch
Width (B) - 1.26 (+0.000 to -0.005) inch
Maximum Fillet Shaft (r2) - 0.06 inch
Approximate Weight - 0.322 lbs
Maximum Recomended Shaft Diameter (Slip Fit ISO g6) - 1.6871 inch
Minimum Recomended Shaft Diameter (Slip Fit ISO g6) - 1.6865 inch
Maximum Recomended Shaft Diameter (Press Fit ISO m5) - 1.6883 inch
Maximum Recomended Shaft Diameter (Press Fit ISO m5) - 1.6879 inch

Principal Dimensions & Load Ratings (Metric) :
Weight - 0.14606 kg

Other salient points to be noted :
* Sorted by outside diameter.

♦ ♦ Images are for representation purposes only
