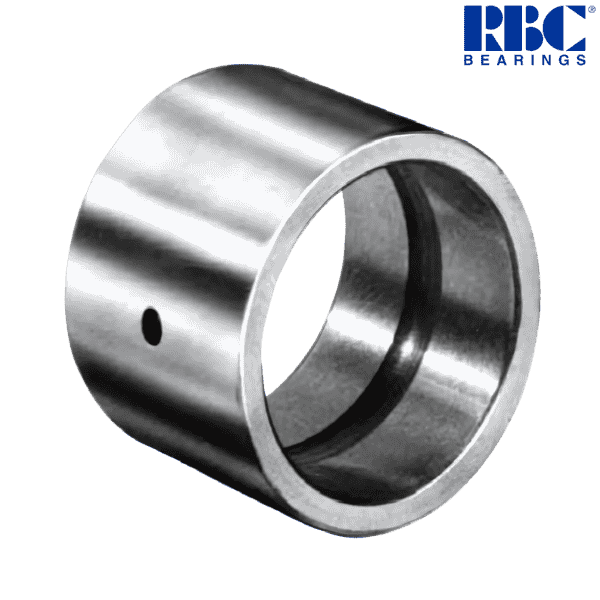

IR 7295 RBC

RBC

Download Data Sheet

Country Of Origin: USA

Variant

Share this product

Brand - RBC
Item Number - IR 7295 RBC
Category - Inner Ring

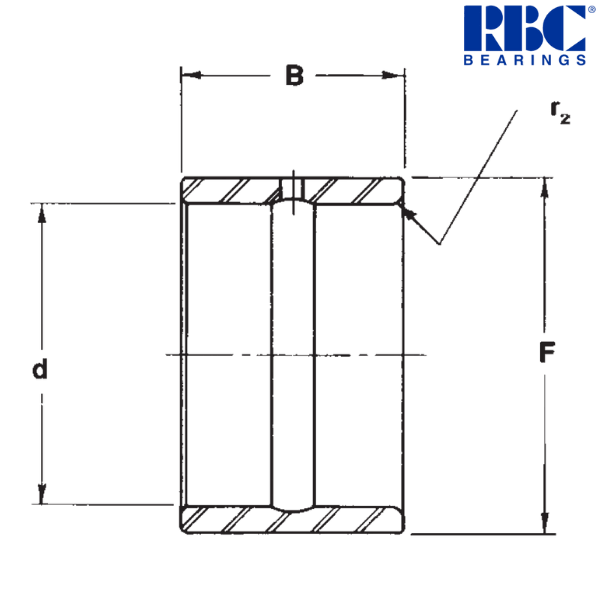

Principal Dimensions & Load Ratings (Imperial) :
Nominal Inside Diameter (d) * - 1.3125 inch
Minimum Inside Diameter (d) - 1.312 inch
Maximum Inside Diameter (d) - 1.3125 inch
Nominal Outside Diameter (F) * - 1.625 inch
Maximum Outside Diameter (F) - 1.624 inch
Minimum Outside Diameter (F) - 1.6234 inch
Width (B) - 1.26 (+0.000 to -0.005) inch
Maximum Fillet Shaft (r2) - 0.06 inch
Maximum Recomended Shaft Diameter (Slip Fit ISO g6) - 1.3121 inch
Minimum Recomended Shaft Diameter (Slip Fit ISO g6) - 1.3115 inch
Maximum Recomended Shaft Diameter (Press Fit ISO m5) - 1.3133 inch
Maximum Recomended Shaft Diameter (Press Fit ISO m5) - 1.3129 inch

Other salient points to be noted :
* Sorted by outside diameter.
