IR 7295 C RBC

RBC

Download Data Sheet

Country Of Origin: USA

Variant

Share this product

Brand - RBC
Item Number - IR 7295 C RBC
Category - Inner Ring

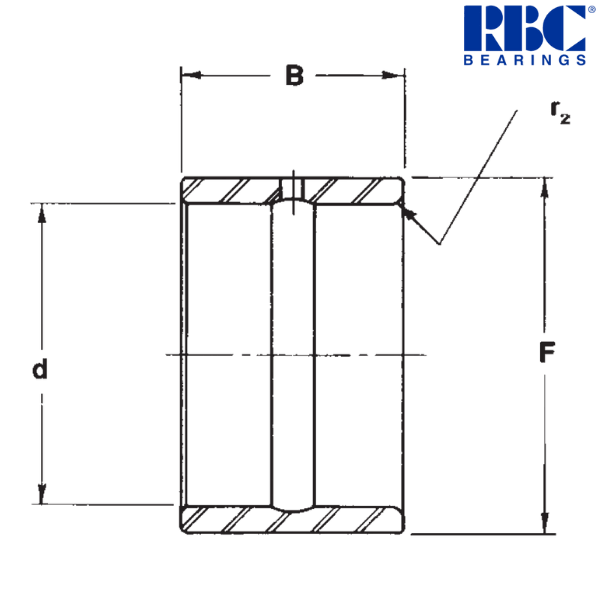

Principal Dimensions & Load Ratings (Imperial) :
Nominal Inside Diameter (d) * - 1.375 inch
Minimum Inside Diameter (d) - 1.3745 inch
Maximum Inside Diameter (d) - 1.375 inch
Nominal Outside Diameter (F) * - 1.625 inch
Maximum Outside Diameter (F) - 1.624 inch
Minimum Outside Diameter (F) - 1.6234 inch
Width (B) - 1.26 (+0.000 to -0.005) inch
Maximum Fillet Shaft (r2) - 0.06 inch
Approximate Weight - 0.209 lbs
Maximum Recomended Shaft Diameter (Slip Fit ISO g6) - 1.3746 inch
Minimum Recomended Shaft Diameter (Slip Fit ISO g6) - 1.374 inch
Maximum Recomended Shaft Diameter (Press Fit ISO m5) - 1.3758 inch
Maximum Recomended Shaft Diameter (Press Fit ISO m5) - 1.3754 inch
MS 51962 Suffix ** - (-18)

Principal Dimensions & Load Ratings (Metric) :
Weight - 0.09480 kg

Other salient points to be noted :
* Sorted by outside diameter.
** These inner rings meet Military Standard MS 51962

♦ ♦ Images are for representation purposes only
