IR 7275 C RBC

RBC

Download Data Sheet

Country Of Origin: USA

Variant

Share this product

Brand - RBC
Item Number - IR 7275 C RBC
Category - Inner Ring

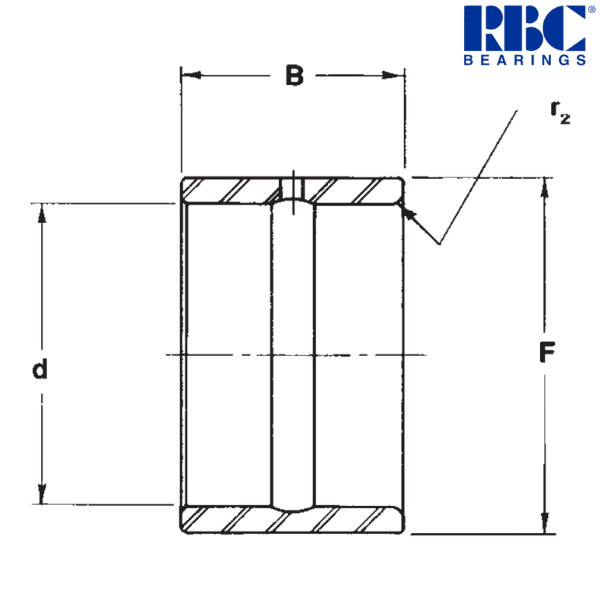

Principal Dimensions & Load Ratings (Imperial) :
Nominal Inside Diameter (d) * - 1.25 inch
Minimum Inside Diameter (d) - 1.2495 inch
Maximum Inside Diameter (d) - 1.25 inch
Nominal Outside Diameter (F) * - 1.5 inch
Maximum Outside Diameter (F) - 1.499 inch
Minimum Outside Diameter (F) - 1.4984 inch
Width (B) - 1.26 (+0.000 to -0.005) inch
Maximum Fillet Shaft (r2) - 0.06 inch
Approximate Weight - 0.191 lbs
Maximum Recomended Shaft Diameter (Slip Fit ISO g6) - 1.2496 inch
Minimum Recomended Shaft Diameter (Slip Fit ISO g6) - 1.249 inch
Maximum Recomended Shaft Diameter (Press Fit ISO m5) - 1.2508 inch
Maximum Recomended Shaft Diameter (Press Fit ISO m5) - 1.2504 inch
MS 51962 Suffix ** - (-16)

Principal Dimensions & Load Ratings (Metric) :
Weight - 0.08664 kg

Other salient points to be noted :
* Sorted by outside diameter.
** These inner rings meet Military Standard MS 51962

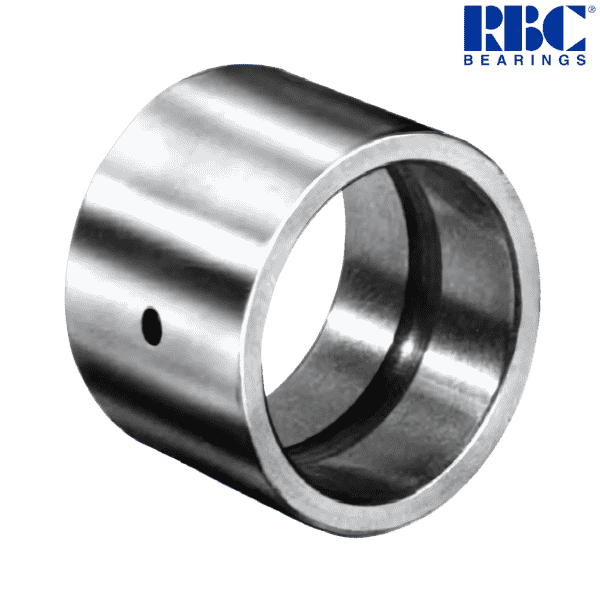

♦ ♦ Images are for representation purposes only
