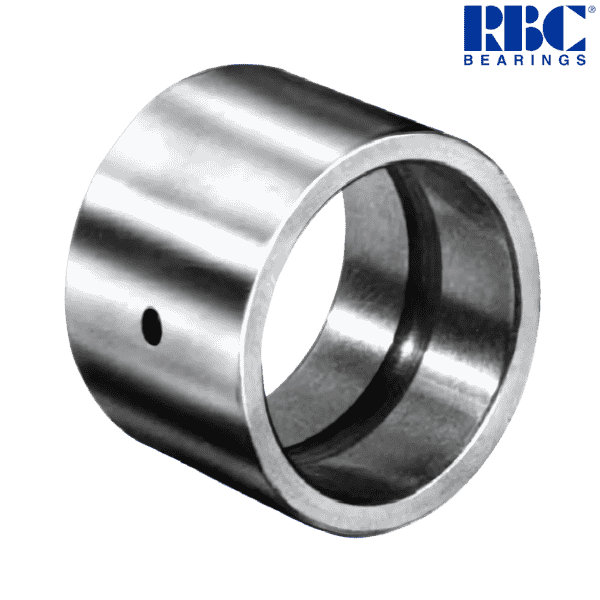

IR 7173 C RBC Image
Roll over image to zoom in Click on image to zoom
IR 7173 C RBC ImageIR 7173 C RBC

IR 7173 C RBC

RBC
Download Data Sheet
Country Of Origin: USA

Description

Brand - RBC
Item Number - IR 7173 C RBC
Category - Inner Ring

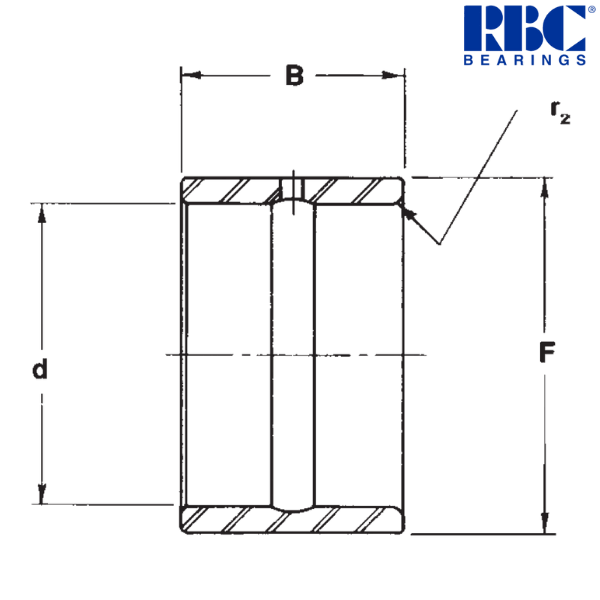

Principal Dimensions & Load Ratings (Imperial) :
Nominal Inside Diameter (d) * - 0.6875 inch
Minimum Inside Diameter (d) - 0.6871 inch
Maximum Inside Diameter (d) - 0.6875 inch
Nominal Outside Diameter (F) * - 0.875 inch
Maximum Outside Diameter (F) - 0.8743 inch
Minimum Outside Diameter (F) - 0.8738 inch
Width (B) - 0.76 (+0.000 to -0.005) inch
Maximum Fillet Shaft (r2) - 0.04 inch
Approximate Weight - 0.049 lbs
Maximum Recomended Shaft Diameter (Slip Fit ISO g6) - 0.6872 inch
Minimum Recomended Shaft Diameter (Slip Fit ISO g6) - 0.6868 inch
Maximum Recomended Shaft Diameter (Press Fit ISO m5) - 0.6881 inch
Maximum Recomended Shaft Diameter (Press Fit ISO m5) - 0.6878 inch

Principal Dimensions & Load Ratings (Metric) :
Weight - 0.02223 kg

Other salient points to be noted :
* Sorted by outside diameter.

♦ ♦ Images are for representation purposes only
