IR 7153 RBC

RBC

Download Data Sheet

Country Of Origin: USA

Variant

Share this product

Brand - RBC
Item Number - IR 7153 RBC
Category - Inner Ring

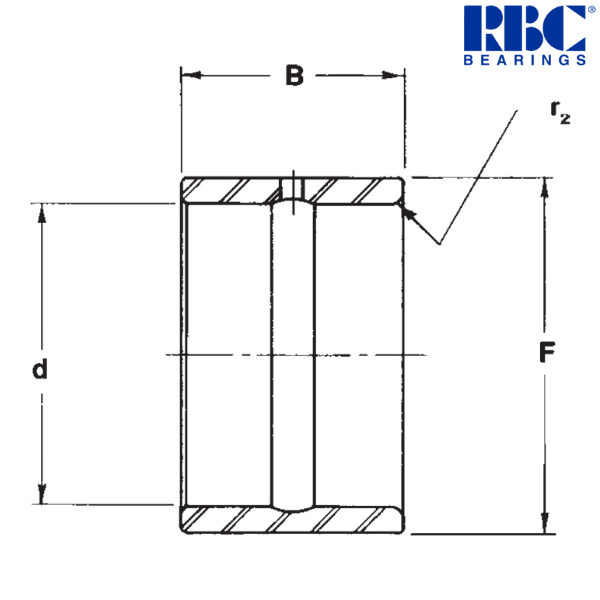

Principal Dimensions & Load Ratings (Imperial) :
Nominal Inside Diameter (d) * - 0.5 inch
Minimum Inside Diameter (d) - 0.4996 inch
Maximum Inside Diameter (d) - 0.5 inch
Nominal Outside Diameter (F) * - 0.75 inch
Maximum Outside Diameter (F) - 0.7493 inch
Minimum Outside Diameter (F) - 0.7488 inch
Width (B) - 0.76 (+0.000 to -0.005) inch
Maximum Fillet Shaft (r2) - 0.04 inch
Approximate Weight - 0.05 lbs
Maximum Recomended Shaft Diameter (Slip Fit ISO g6) - 0.4997 inch
Minimum Recomended Shaft Diameter (Slip Fit ISO g6) - 0.4993 inch
Maximum Recomended Shaft Diameter (Press Fit ISO m5) - 0.5006 inch
Maximum Recomended Shaft Diameter (Press Fit ISO m5) - 0.5003 inch
MS 51962 Suffix ** - (-2)

Principal Dimensions & Load Ratings (Metric) :
Weight - 0.02268 kg

Other salient points to be noted :
* Sorted by outside diameter.
** These inner rings meet Military Standard MS 51962

♦ ♦ Images are for representation purposes only
